Eaton E59-M18A109C02-A1

SKU: CS3575546MPN: E59-M18A109C02-A1UPC/EAN: 782116183432

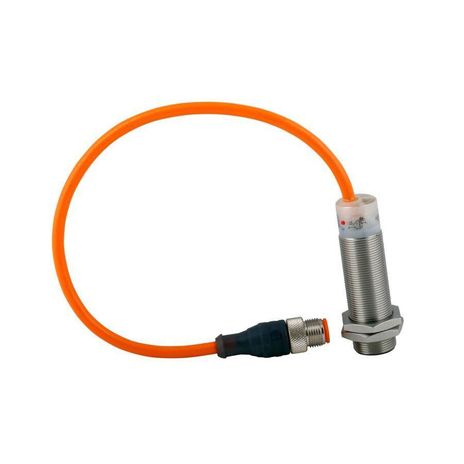

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M18A108C02-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C116D01-D1, E59-M18C118A01-A1, E59-M18C118C02-A1, E59-M30A115A01-A1, E59-M30A115C02-A1, E59-M30A115C02-D1
Eaton E59-M18A108C02-D1, E59-M18A108D01-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C118A01-A1, E59-M18C118C02-A1
Eaton E59-M18A109A01-A1, E59-M18A109C02-A1
Eaton E59-M12A105A01-A1, E59-M12A105C02-D1, E59-M12C110A01-A1, E59-M12C110C02-A1, E59-M12C110C02-D1, E59-M18A108C02-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C116D01-D1, E59-M18C118A01-A1, E59-M18C118C02-A1, E59-M30A115A01-A1, E59-M30A115C02-A1, E59-M30A115C02-D1
Eaton E59-M18A108C02-D1, E59-M18A108D01-D1, E59-M18A109A01-A1, E59-M18A109C02-A1, E59-M18C116C02-D1, E59-M18C118A01-A1, E59-M18C118C02-A1
Contact us for pricing and availability

Product Details

Eaton iProx Sensor, E59, Straight, 18 mm, Shielded, 360° viewable LED, 6.6 ft, 200 mA at 20-132 V, \<1% sensing range, PVC, 2-wire AC, NO, 20-132V

Attributes

Accuracy < 1% sensing range
Actuator Function Shielded
Cable Type Polyvinyl Chloride (PVC)
Contact Configuration 2-wire AC, NO
Contact Rating 200 mA at 20-132 V
Enclosure Material 303 stainless steel
Environmental Rating NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage 20-132 V
Led Indicator 360 ° viewable LED
Maximum Ac Current 200 mA
Operating Temperature Max 158 FAH
Operating Temperature Max Uom FAH
Operating Temperature Min -40 FAH
Operating Temperature Min Uom FAH
Series E59
Size 18
Temperature Rating -40 to 158 °F
Type E59

Specifications

SKUCS3575546
MPNE59-M18A109C02-A1
UPC/EAN782116183432
