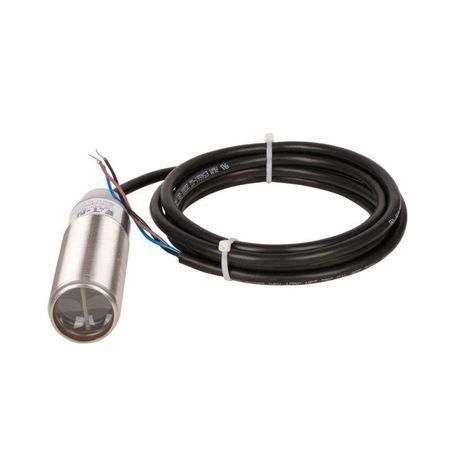

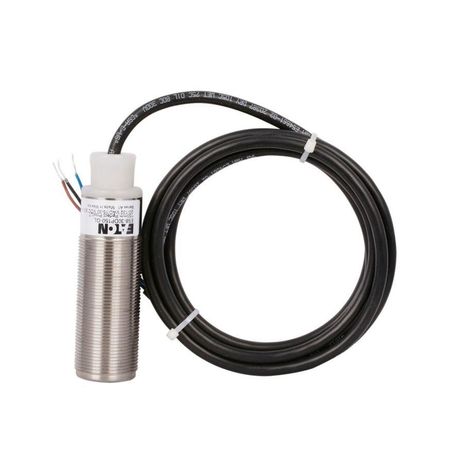

Eaton E58-30DP150-GL

Name: Eaton E58-30DP150-GL
Brand: Eaton
SKU: CS3570329
Price: 996.25 USD
Availability: OutOfStock

SKU: CS3570329MPN: E58-30DP150-GLUPC/EAN: 782113094298

Eaton harsh-duty sensor

$996.25

Unit

Available on backorder

Quantity

remove

add

Product Details

Eaton harsh-duty sensor, Perfect Prox Photoelectric Sensor, E58, Through Beam, Straight, Output ON, flashes when latched, 6.6 ft, 300 mA at 20-132 Vac/15-30 Vdc, PVC, AC: L1 switched, DC: NPN open collector, 20-132 Vac 50/60 Hz, 15-30 Vdc

Attributes

Cable Type	Polyvinyl Chloride (PVC)
Contact Configuration	DC: NPN open collector AC: L1 switched
Contact Rating	300 mA at 20-132 Vac/15-30 Vdc
Enclosure Material	303 stainless steel
Environmental Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 12K, NEMA 13, IP69K
Input Voltage	20-132 Vac at 50/60 Hz, 15-30 Vdc
Led Indicator	Output ON, flashes when latched
Maximum Ac Current	300 mA
Maximum Dc Current	300 mA
Operating Temperature Max	131 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Latching short circuit
Sensor Type	Through beam
Series	E58
Type	Perfect Prox Photoelectric Sensor
