Eaton E57EAL5T111SN

Name: Eaton E57EAL5T111SN
Brand: Eaton
SKU: CS3550204
Price: 207.92 USD
Availability: OutOfStock

SKU: CS3550204MPN: E57EAL5T111SNUPC/EAN: 782113908687

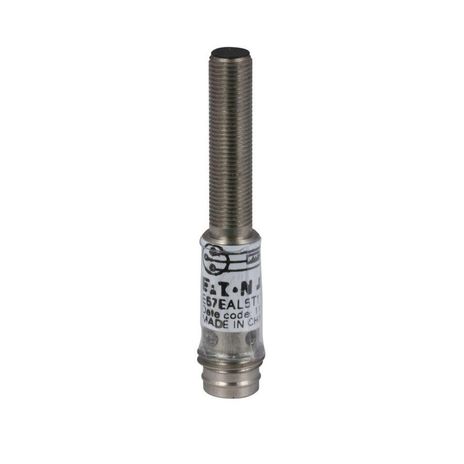

Eaton E57 inductive proximity sensor

Product Details

Miniature Short Body Inductive Proximity Sensor, E57, Straight, 5 mm, Shielded, Output ON, M8, 200 mA at 10-30 Vdc, 3 pin, \<1% sensing range, NO PNP open collector, 10-30 Vdc

Attributes

Accuracy	< 1% sensing range
Actuator Function	Shielded
Connection	M8
Contact Configuration	NO PNP open collector
Contact Rating	200 mA at 10-30 Vdc
Enclosure Material	Stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	10-30 Vdc
Led Indicator	Output ON
Maximum Dc Current	200 mA
Number Of Pins	3.0000
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Transient, power protection on false pulse suppression, auto-reset short circuit
Series	E57
Size	5 mm
Temperature Rating	-13 to 158 °F
Type	E57
