Omega RTD-831-MTP

SKU: CS354129MPN: RTD-831-MTP

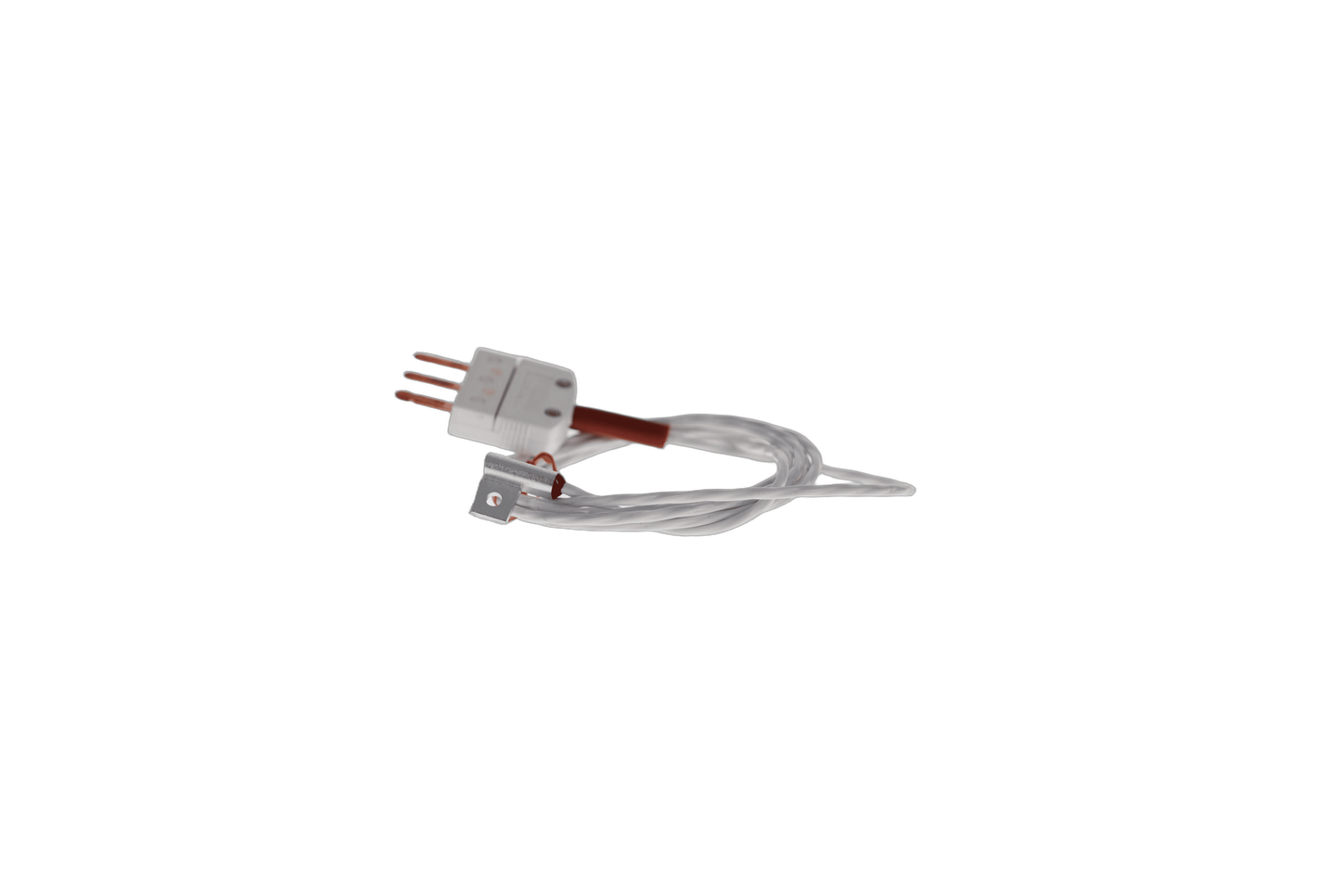

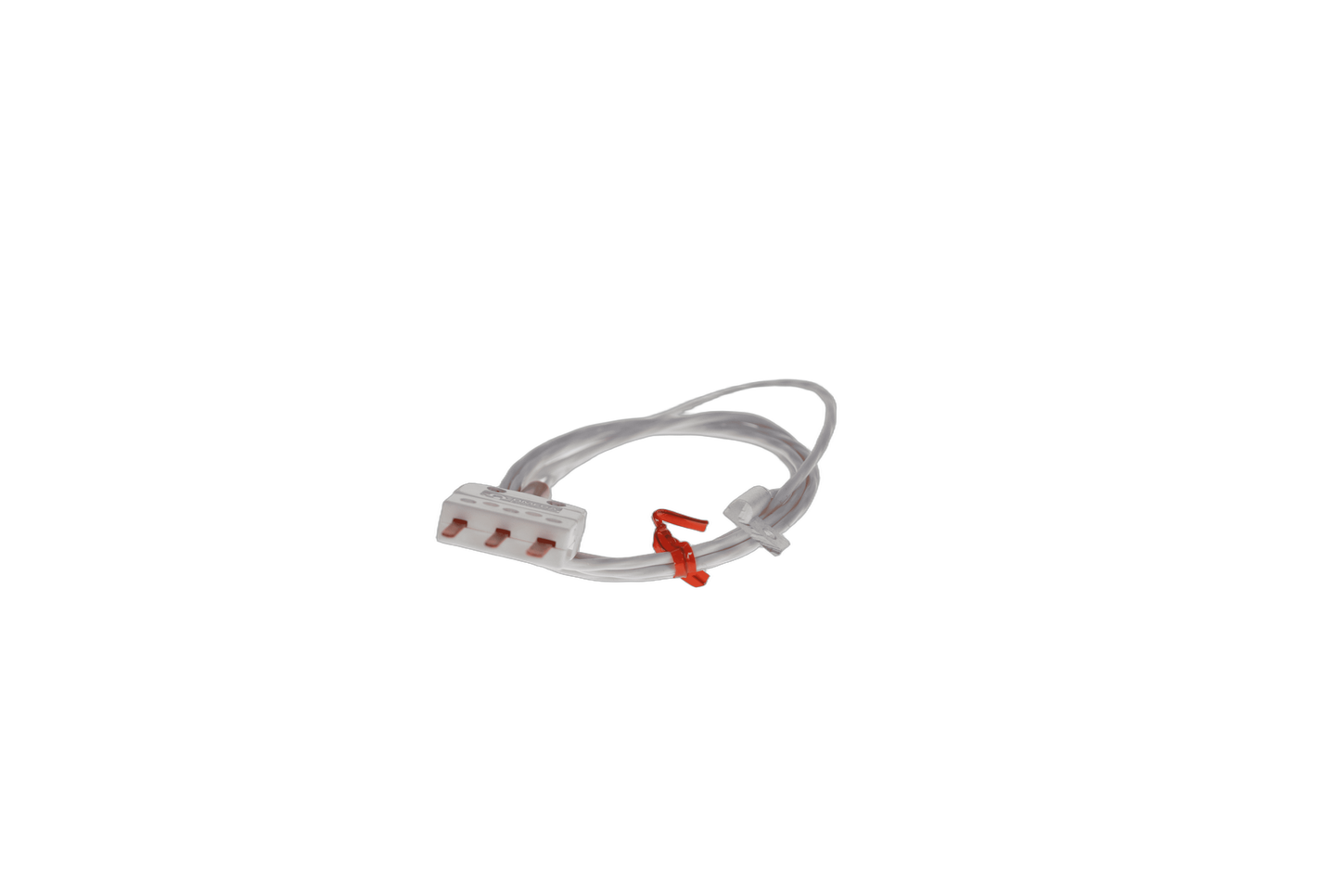

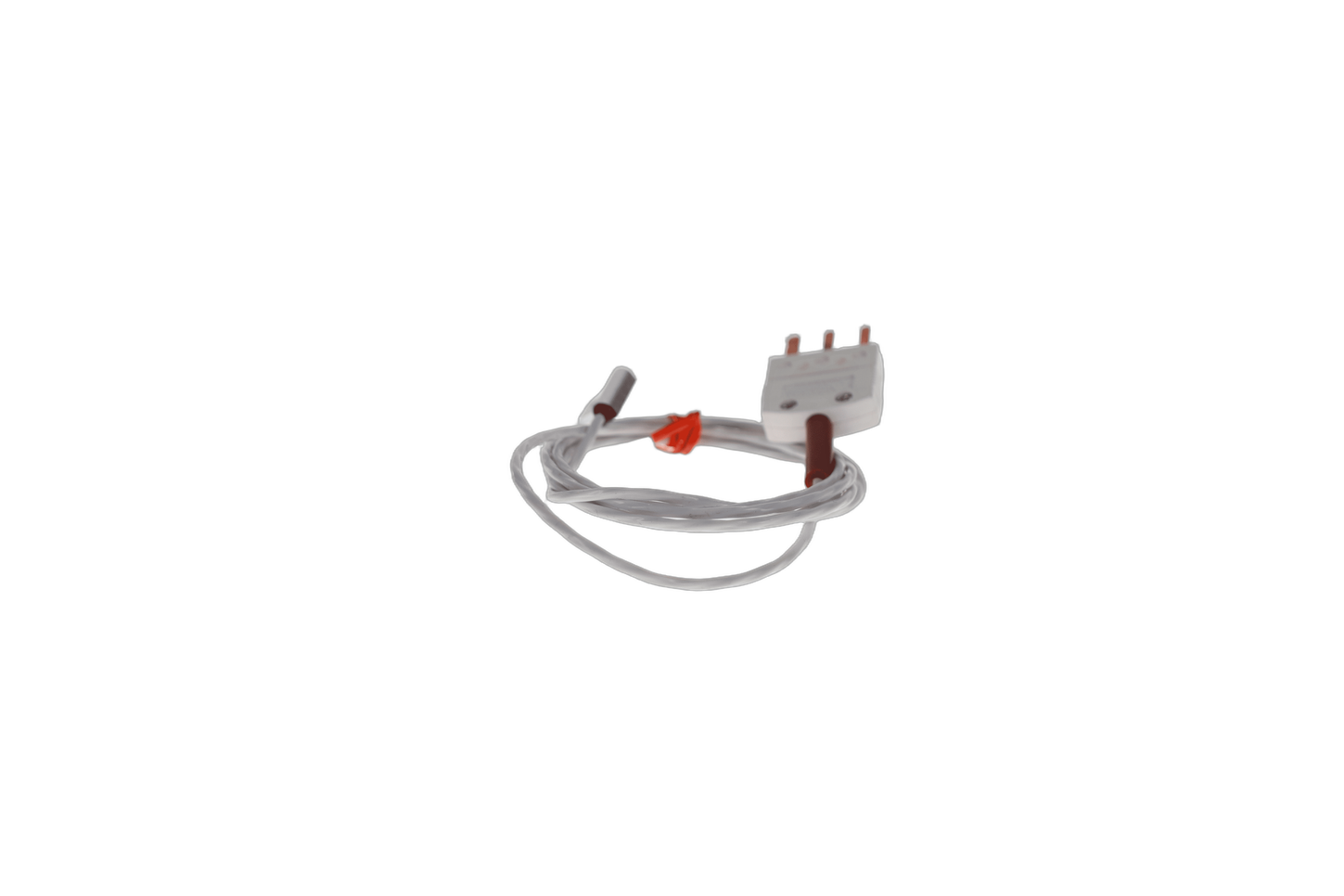

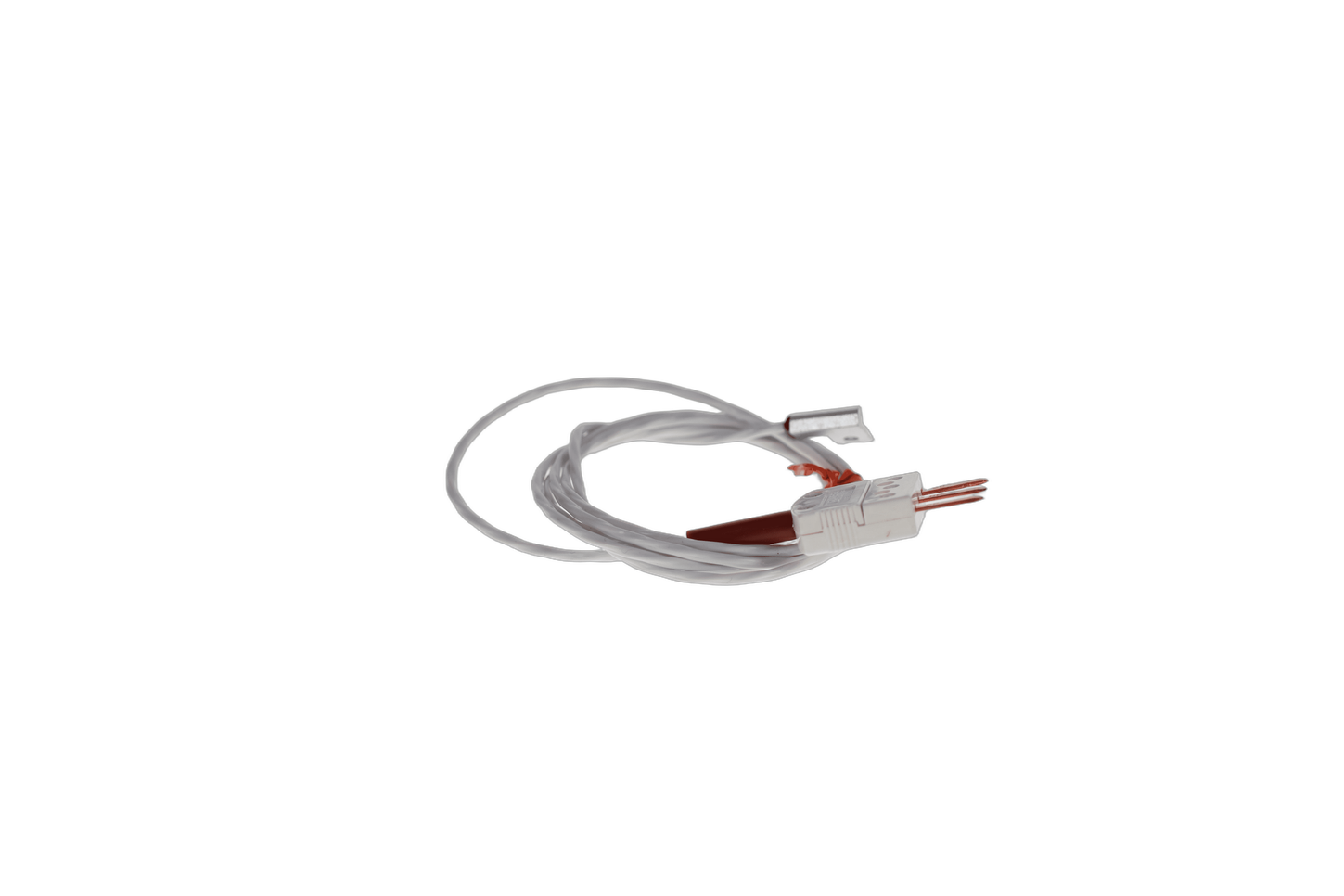

Bolt-On RTD Sensor with Aluminum Flag Housing

CS354129 18
CS354129
CS354129 6
CS354129 12
CS354129 18
CS354129
$157.39
Unit
4 in stock
remove
add

Documents

Product Details

  • Updated housing design for improved strain relief
  • Standard hole for #3 and #4 screw. Options available for #5, #6, #8 screw
  • Small aluminum housing allows for installation on most flat surfaces
  • Sensor can be bolted or cemented into place

Attributes

Accuracy Class A
Mounting Bolt-on or Cement-on
Series ID RTD-831-Series
Insulation PFA
Screw Size #3, #4
Wire Gauge 26 AWG
Cable Length 1 m
Barrel Length 0.562 in
Accuracy Detail Class A per IEC 60751
Barrel Diameter 0.19 in
Number of Wires 3
Sheath Material Aluminum
Country of Origin United States
Nominal Resistance 100 Ω
Mounting Body width 0.31 in
Mounting Body Length 0.31 in
Electrical Connection 3-Prong Miniature Male Thermocouple Connector
Temperature Sensor Type RTD
Process Temperature, Max 230 °C
Process Temperature, Min -60 °C
Mounting Screw Hole Diameter 0.116 in

Specifications

SKUCS354129
MPNRTD-831-MTP
