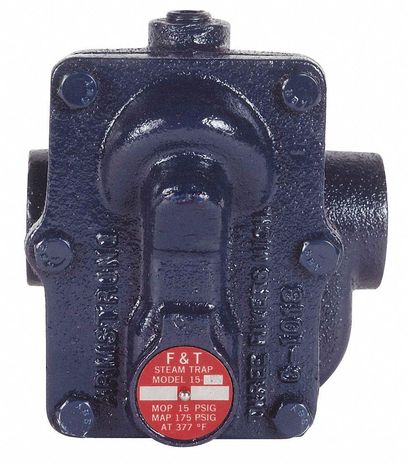

Armstrong Fluid Technology 15BI3

Steam Trap 15 psi 353F 5-½ in L

Steam Trap (F)NPT Connections ¾ in Max Operating PSI 15 psi End to End Length 5 ½ in Condensate Capacity Lbs/Hr 1 200 lb/hr Max Temp 353 Degrees @ 125 psig Type Float and Thermostatic Body Material Cast Iron Pipe Configuration In-Line Trap Position Horizontal Application Steam
