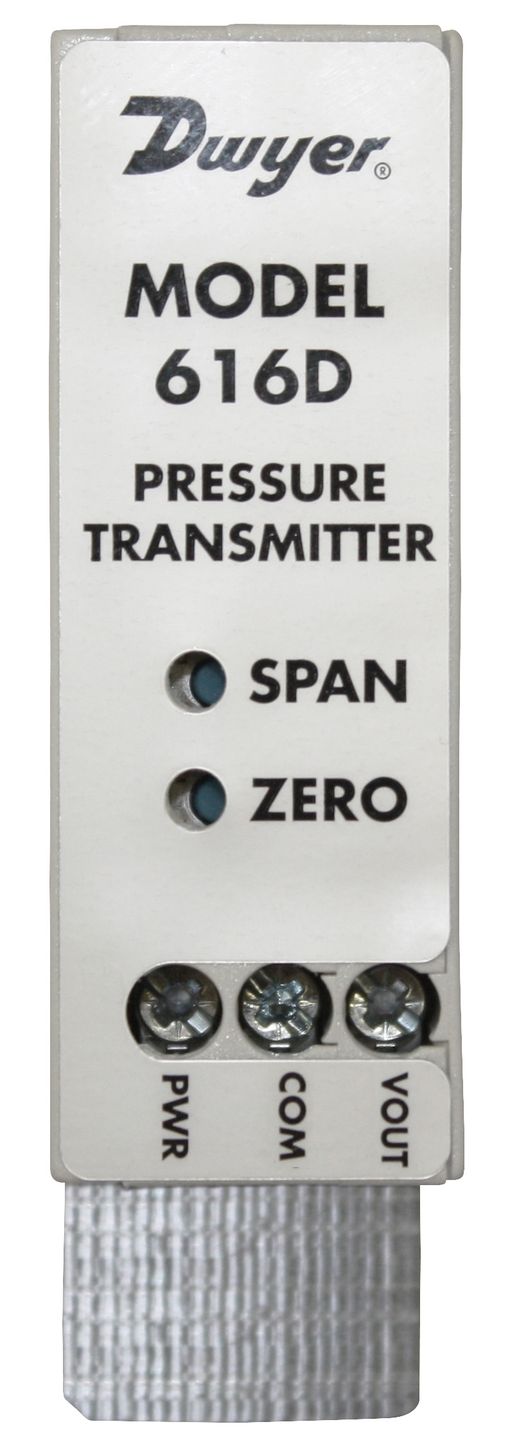

Dwyer 616D-8
SKU: CS3373384MPN: 616D-8Alternate Part #: 101601-07
616D-8 XMTR 0-10 PSI
$243.70
UnitAvailable on backorder
Product Details
Differential pressure transmitter, range 0-10 psid, max. pressure 45 psig.
Attributes
| Accuracy | ±0.25 FS @ 77°F (25°C). |
| Agency Approval | CE. |
| Commodity Code | 0164 |
| Current Consumption | 40 mA max. |
| Electrical Connection | Screw-type terminal block. |
| Loop Resistance | Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ min. |
| Mounting Orientation | Vertical, on a 1.378” (35 mm) DIN rail. |
| Output Signal | 4 to 20 mA (2-wire); 0 to 10 VDC (3-wire). |
| Power Requirement | 10 to 35 VDC (2-wire); 17 to 36 VDC, or isolated 21.6 to 33 VAC (3-wire). |
| Pressure Limit | See chart on catalog page. |
| Process Connection | ⅛” female NPT. Accessories included are 2 barbed fittings for ⅛” (3.12 mm) and 3/16” (4.77 mm) ID rubber or vinyl tubing. |
| Service | Air and non-combustible, compatible gases. |
| Stability | ±1% FS/yr. |
| Thermal Effect | ±0.02% FS/°F (0.036% FS/°C). |
| Wetted Material | Consult factory. |
| Zero And Span Adjustment | Push buttons. |
Specifications
| SKU | CS3373384 |
|---|---|
| MPN | 616D-8 |
| Alternate Part # | 101601-07 |
