Belimo F6125-150SHP+PRBUP-3-T

Name: Belimo F6125-150SHP+PRBUP-3-T
Brand: Belimo
SKU: CS3357642
Price: 4547.83 USD
Availability: OutOfStock

SKU: CS3357642MPN: F6125-150SHP+PRBUP-3-T

Butterfly Valve (BFV), 5”, 2-way, ANSI Class 150, Cv 714 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2 x…

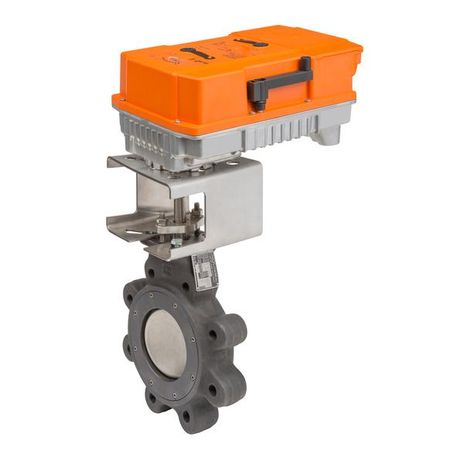

Belimo F6100-150SHP+PRBUP-3-T, F6100-150SHP+PRXUP-MFT-T, F6100-300SHP+PRBUP-3-T, F6100-300SHP+PRXUP-MFT-T, F6125-150SHP+PRBUP-3-T, F6125-150SHP+PRXUP-MFT-T, F6125-300SHP+PRBUP-3-T, F6125-300SHP+PRXUP-MFT-T, F6150-150SHP+PRBUP-3-T, F6150-150SHP+PRXUP-MFT-T, F6150-300SHP+PRBUP-3-T, F6150-300SHP+PRXUP-MFT-T, F650-150SHP+PRBUP-3-T, F650-150SHP+PRXUP-MFT-T, F650-300SHP+PRBUP-3-T

$4,547.83

Unit

Available on backorder

Quantity

remove

add

Product Details

Butterfly Valve (BFV), 5”, 2-way, ANSI Class 150, Cv 714 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2 x SPDT, terminals

Attributes

Control	On/Off Floating point
Auxillary Switch	2 x SPDT
Valve Size	5” [125]
Cv	714.0
Cv 60°	393.0
Cv 90°	714.0
Flow Pattern	2-way
Fail-Safe	Non-Spring Return
Nominal Voltage	AC 24…240 V / DC 24…125 V
Close-Off Pressure ∆Ps	285 psi
Transformer Sizing	20 VA @ AC/DC 24 V (class 2 power source), 23 VA @ AC/DC 120 V, 52 VA @ AC 230 V
Enclosure	UL Enclosure Type 4X
Pressure Independent	NO
Power Supply	24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, -20% / +10%
Power Consumption In Operation	20 W
Power Consumption In Rest Position	6 W
Electrical Connection	Terminal blocks, (PE) Ground-Screw
Overload Protection	electronic thoughout 0…90° rotation
Input Impedance	1000 Ω
Angle Of Rotation	90°
Direction Of Motion Motor	reversible with app
Position Indication	integral pointer
Running Time (Motor)	35 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Fluid	chilled or hot water, up to 60% glycol, steam
Controllable Flow Range	quarter turn, mechanically limited
Pipe Connection	ASME/ANSI class 150 flange
Ansi Class	150
Number Of Bolt Holes	8.0
Lug Threads	¾-10 UNC
Maximum Inlet Pressure (Steam)	50 psi
Maximum Velocity	32 FPS
Fluid Temp Range (Water)	-22…400°F [-30…204°C]
Degree Of Protection Iec/En	IP66/67
Degree Of Protection Nema/Ul	NEMA 4X
Connection	terminals
Pipe Connection Type	flange
Kvs Range [M³/H]	171…1000 m³/h
Kvmax Range [M³/H]	171…1000 m³/h
Flow Characteristic	modified equal percentage, unidirectional
Servicing	maintenance-free
Valve Body	Carbon steel full lug (ASME B16.34)
Stem	17-4 PH stainless steel
Seat	RPTFE
Housing Material	die cast aluminium polycarbonate cover
Nominal Voltage Dc	24…125 V
Nominal Voltage Ac	24…240 V
Noise Level, Motor	68 dB(A)
Body Pressure Rating	ANSI Class 150
Quality Standard	ISO 9001
Bearing	glass backed PTFE
Disc	316 stainless steel
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Cv 60° Range [Gpm]	198…1160
Cv 90° Range [Gpm]	198…1160
Bolt Half Centered	8.5
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, 1 x 10° / 1 x 0…90° (default setting 85°)
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
