HVAC/RValvesBelimo

Belimo F6250LU+PRBUP-3-T-250

SKU: CS3357349MPN: F6250LU+PRBUP-3-T-250

Butterfly Valve (BFV), 10”, 2-way, ANSI Class Consistent with 125, Cv 5340 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, F…

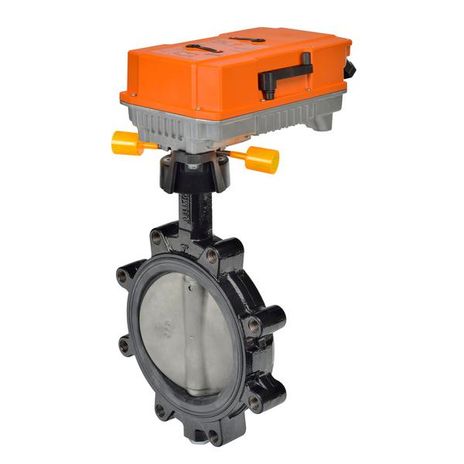

Belimo F6100HD+PRBUP-3-T, F6100HD+PRXUP-3-T, F6100HD+PRXUP-MFT-T, F6125HD+PRBUP-3-T, F6125HD+PRXUP-3-T, F6125HD+PRXUP-MFT-T, F6150HD+PRBUP-3-T, F6150HD+PRXUP-3-T, F6150HD+PRXUP-MFT-T, F6200L+PRBUP-3-T-200, F6200L+PRXUP-3-T-200, F6200L+PRXUP-MFT-T-200, F6200LU+PRBUP-3-T-200, F6200LU+PRXUP-3-T-200, F6200LU+PRXUP-MFT-T-200
$3,560.70
Unit
Available on backorder
remove
add

Product Details

Butterfly Valve (BFV), 10”, 2-way, ANSI Class Consistent with 125, Cv 5340 |Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, On/Off, Floating point, 2 x SPDT, terminals

Attributes

Control On/Off Floating point
Auxillary Switch 2 x SPDT
Valve Size 10” [250]
Cv 5340.0
Cv 60° 2047.0
Cv 90° 5340.0
Flow Pattern 2-way
Fail-Safe Non-Spring Return
Nominal Voltage AC 24…240 V / DC 24…125 V
Close-Off Pressure ∆Ps 50 psi
Transformer Sizing 20 VA @ AC/DC 24 V (class 2 power source), 23 VA @ AC/DC 120 V, 52 VA @ AC 230 V
Enclosure UL Enclosure Type 4X
Pressure Independent NO
Power Supply 24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, -20% / +10%
Power Consumption In Operation 20 W
Power Consumption In Rest Position 6 W
Electrical Connection Terminal blocks, (PE) Ground-Screw
Overload Protection electronic thoughout 0…90° rotation
Input Impedance 1000 Ω
Angle Of Rotation 90°
Direction Of Motion Motor reversible with app
Position Indication integral pointer
Running Time (Motor) 35 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Fluid chilled or hot water, up to 60% glycol
Controllable Flow Range 90° rotation
Pipe Connection for use with ANSI class 125/150 flanges
Ansi Class Consistent with 125
Number Of Bolt Holes 12.0
Lug Threads ⅞-9 UNC
Rangeability Sv 10:1
Maximum Velocity 12 FPS
Fluid Temp Range (Water) -22…250°F [-30…120°C]
Degree Of Protection Iec/En IP66/67
Degree Of Protection Nema/Ul NEMA 4X
Connection terminals
Pipe Connection Type flange
Kvs Range [M³/H] 1001…10000 m³/h
Kvmax Range [M³/H] 1001…10000 m³/h
Flow Characteristic modified equal percentage
Servicing maintenance-free
Valve Body Ductile cast iron ASTM A536
Stem 420 stainless steel
Seat EPDM
Housing Material die cast aluminium polycarbonate cover
Nominal Voltage Dc 24…125 V
Nominal Voltage Ac 24…240 V
Noise Level, Motor 68 dB(A)
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Quality Standard ISO 9001
Bearing Steel, PTFE, Bronze
Disc 304 stainless steel
Body Finish polyester powder coated
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Cv 60° Range [Gpm] 1161…11600
Cv 90° Range [Gpm] 1161…11600
Bolt Half Centered 14.25
Auxiliary Switch 2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, 1 x 10° / 1 x 0…90° (default setting 85°)
Fail-Safe Function Non fail-safe
Control Type Web Floating/3-point
Fail-Safe NO

Specifications

SKUCS3357349
MPNF6250LU+PRBUP-3-T-250
