Belimo B6300VB-207+PRXUP-MFT-T

Name: Belimo B6300VB-207+PRXUP-MFT-T
Brand: Belimo
SKU: CS3357261
Price: 6610.93 USD
Availability: OutOfStock

SKU: CS3357261MPN: B6300VB-207+PRXUP-MFT-T

Ball Valve (VB), 3”, 2-way, ANSI Class 150, Cv 207 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, …

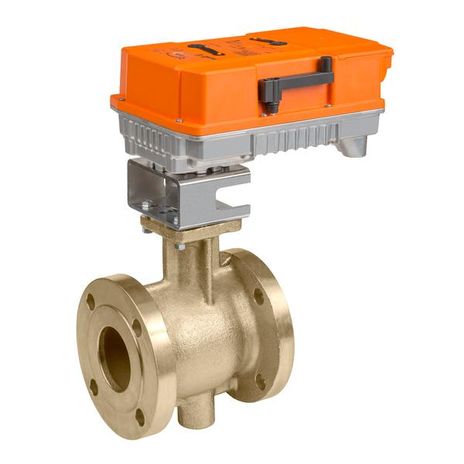

Belimo B6300VB-207+PRBUP-3-T, B6300VB-207+PRXUP-MFT-T, B6400VB-350+PRBUP-3-T, B6400VB-350+PRXUP-MFT-T, B6600VB-507+PRBUP-3-T, B6600VB-507+PRXUP-MFT-T

$6,610.93

Unit

Available on backorder

Quantity

remove

add

Documents

Belimo B2100VB-024+PKRXUP-MFT-T, B2100VB-024+PRBUP-3-T, B2100VB-024+PRXUP-MFT-T, B2150VB-055+PKRXUP-MFT-T, B2150VB-055+PRBUP-3-T, B2150VB-055+PRXUP-MFT-T, B2200VB-077+PKRXUP-MFT-T, B2200VB-077+PRBUP-3-T, B2200VB-077+PRXUP-MFT-T, B6300VB-207+PKRXUP-MFT-T, B6300VB-207+PRBUP-3-T, B6300VB-207+PRXUP-MFT-T, B6400VB-350+PKRXUP-MFT-T, B6400VB-350+PRBUP-3-T, B6400VB-350+PRXUP-MFT-T Installation Instructions

Product Details

Ball Valve (VB), 3”, 2-way, ANSI Class 150, Cv 207 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Attributes

Control	MFT/programmable
Auxillary Switch	2 x SPDT
Valve Size	3” [80]
Cv	207.0
Flow Pattern	2-way
Fail-Safe	Spring Return
Valve Trim	Stainless steel
Nominal Voltage	AC 24…240 V / DC 24…125 V
Close-Off Pressure ∆Ps	200 psi
Transformer Sizing	20 VA @ AC/DC 24 V (class 2 power source), 23 VA @ AC/DC 120 V, 52 VA @ AC 230 V
Enclosure	UL Enclosure Type 4X
Pressure Independent	NO
Power Supply	24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, -20% / +10%
Power Consumption In Operation	20 W
Power Consumption In Rest Position	6 W
Electrical Connection	Terminal blocks, (PE) Ground-Screw
Overload Protection	electronic thoughout 0…90° rotation
Operating Range	2…10 V (default), 4…20 mA, variable (VDC, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Input Impedance	100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for On/Off
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	90°
Direction Of Motion Motor	reversible with app
Position Indication	integral pointer
Running Time (Motor)	default 35 s, variable 30…120 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Fluid	chilled or hot water, up to 60% glycol, steam
Controllable Flow Range	75°
Pipe Connection	125/150 lb flanged, ASME/ANSI b16.1/b16.5
Ansi Class	150
Number Of Bolt Holes	4.0
Maximum Inlet Pressure (Steam)	150 psi
Max Differential Pressure (Steam)	100 psi
Rangeability Sv	300:1
Fluid Temp Range (Water)	-22…380°F [-30…193°C]
Degree Of Protection Iec/En	IP66/67
Degree Of Protection Nema/Ul	NEMA 4X
Connection	terminals
Cv Range [Gpm]	198…1160
Pipe Connection Type	flange
Kvs Range [M³/H]	171…1000 m³/h
Flow Characteristic	equal percentage
Servicing	repack/rebuild kits available
Valve Body	WCC grade carbon steel
Stem	stainless steel
Seat	PTFE
Stem Seal	PTFE V-ring
Housing Material	Die cast aluminium and plastic casing
Nominal Voltage Dc	24…125 V
Nominal Voltage Ac	24…240 V
Noise Level, Motor	68 dB(A)
Body Pressure Rating	ANSI Class 150
Quality Standard	ISO 9001
Fluid Temp Range (Steam)	-22…380°F [-30…193°C]
Maximum Differential Pressure (Water)	150 psi
Ball	stainless steel
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Auxiliary Switch	2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, 1 x 10° / 1 x 0…90° (default setting 85°)
Fail-Safe Function	Non fail-safe
Control Type Web	MFT/Programmable
Fail-Safe	NO
