HVAC/RValvesBelimo

Belimo F680HD+PRXUP-MFT-T

SKU: CS3356942MPN: F680HD+PRXUP-MFT-T

Butterfly Valve (BFV), 3”, 2-way, ANSI Class Consistent with 125, Cv 302 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V…

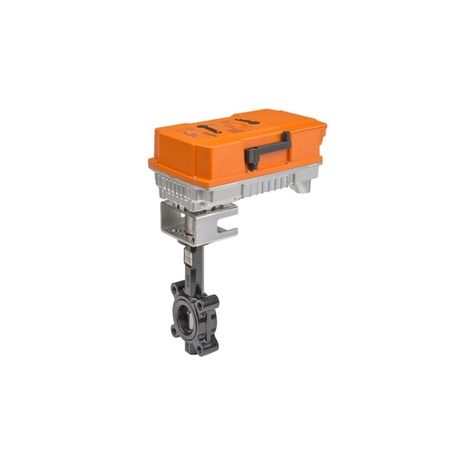

Belimo F650HD+PRXUP-3-T, F650HD+PRXUP-MFT-T, F665HD+PRXUP-3-T, F665HD+PRXUP-MFT-T, F680HD+PRXUP-3-T, F680HD+PRXUP-MFT-T
$2,742.13
Unit
Available on backorder
remove
add

Product Details

Butterfly Valve (BFV), 3”, 2-way, ANSI Class Consistent with 125, Cv 302 |Configurable Valve Actuator, Non fail-safe, AC 24...240 V / DC 24...125 V, 2...10 V, 2 x SPDT, terminals, BACnet MS/TP Modbus RTU MP-Bus, MFT/programmable

Attributes

Control MFT/programmable
Auxillary Switch 2 x SPDT
Valve Size 3” [80]
Cv 302.0
Cv 60° 116.0
Cv 90° 302.0
Flow Pattern 2-way
Fail-Safe Non-Spring Return
Nominal Voltage AC 24…240 V / DC 24…125 V
Close-Off Pressure ∆Ps 200 psi
Transformer Sizing 20 VA @ AC/DC 24 V (class 2 power source), 23 VA @ AC/DC 120 V, 52 VA @ AC 230 V
Enclosure UL Enclosure Type 4X
Pressure Independent NO
Power Supply 24…240 VAC, -20% / +10%, 50/60 Hz, 24…125 VDC, -20% / +10%
Power Consumption In Operation 20 W
Power Consumption In Rest Position 6 W
Electrical Connection Terminal blocks, (PE) Ground-Screw
Overload Protection electronic thoughout 0…90° rotation
Operating Range 2…10 V (default), 4…20 mA, variable (VDC, on/off, floating point)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Input Impedance 100 kΩ for 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for On/Off
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation 90°
Direction Of Motion Motor reversible with app
Position Indication integral pointer
Running Time (Motor) default 35 s, variable 30…120 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Fluid chilled or hot water, up to 60% glycol
Controllable Flow Range 90° rotation
Pipe Connection for use with ANSI class 125/150 flanges
Ansi Class Consistent with 125
Number Of Bolt Holes 4.0
Lug Threads ⅝-11 UNC
Rangeability Sv 10:1 (for 30…70° range)
Maximum Velocity 12 FPS
Fluid Temp Range (Water) -22…250°F [-30…120°C]
Degree Of Protection Iec/En IP66/67
Degree Of Protection Nema/Ul NEMA 4X
Connection terminals
Pipe Connection Type flange
Kvs Range [M³/H] 41…170 m³/h
Kvmax Range [M³/H] 171…1000 m³/h
Flow Characteristic modified equal percentage
Servicing maintenance-free
Valve Body Ductile cast iron ASTM A536
Stem 416 stainless steel
Seat EPDM
Stem Seal EPDM (lubricated)
Housing Material Die cast aluminium and plastic casing
Nominal Voltage Dc 24…125 V
Nominal Voltage Ac 24…240 V
Noise Level, Motor 68 dB(A)
Body Pressure Rating ANSI Class Consistent with 125, 232 psi CWP
Quality Standard ISO 9001
Bearing RPTFE
Disc 304 stainless steel
Body Finish epoxy powder coating (blue RAL 5002)
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU
Cv 60° Range [Gpm] 48…197
Cv 90° Range [Gpm] 198…1160
Bolt Half Centered 6.0
Auxiliary Switch 2 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, 1 x 10° / 1 x 0…90° (default setting 85°)
Fail-Safe Function Non fail-safe
Control Type Web MFT/Programmable
Fail-Safe NO

Specifications

SKUCS3356942
MPNF680HD+PRXUP-MFT-T
