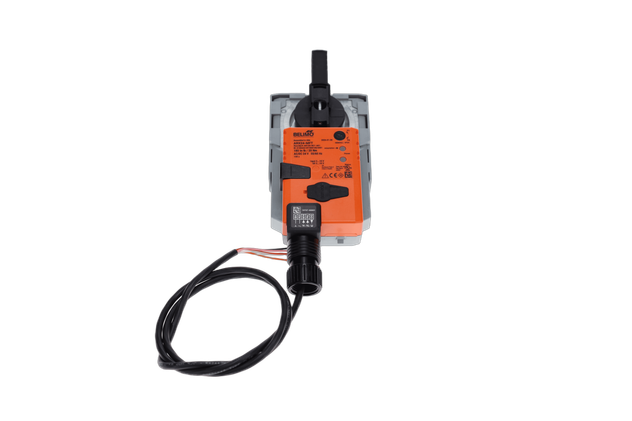

Belimo B332L+NRX24-MFT

SKU: CS3353946MPN: B332L+NRX24-MFT

Ball Valve (BV), 1 ¼”, 3-way, Cv 34 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Belimo B307+LRQX24-MFT, B308+LRQX24-MFT, B309+LRQX24-MFT, B310+LRQX24-MFT, B311+LRQX24-MFT, B312+LRQX24-MFT, B313+LRQX24-MFT, B315+LRQX24-MFT, B316+LRQX24-MFT, B317+LRQX24-MFT, B318+LRQX24-MFT, B320+LRQX24-MFT, B321+LRQX24-MFT, B322+LRQX24-MFT, B323+LRQX24-MFT
$822.47
Unit
Available on backorder
remove
add

Documents

Product Details

Ball Valve (BV), 1 ¼”, 3-way, Cv 34 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control MFT/programmable
Valve Size 1.25” [32]
Cv 34.0
Flow Pattern 3-way Diverting
Fail-Safe Non-Spring Return
Valve Trim Chrome plated brass
Nominal Voltage AC/DC 24 V
Close-Off Pressure ∆Ps 200 psi
Transformer Sizing 6 VA (class 2 power source)
Enclosure UL Enclosure Type 2
Pressure Independent NO
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation 3.5 W
Power Consumption In Rest Position 1.3 W
Electrical Connection 18 GA plenum cable, 3 ft [1 m], with ½” conduit connector (10 ft [3 m] and 15 ft [5 m] available)
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Input Impedance 100 kΩ for DC 2…10 V (0.1 mA), 500 Ω for 4…20 mA, 1500 Ω for PWM and On/Off
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation Max. 90°, adjustable with mechanical stop
Direction Of Motion Motor selectable with switch 0/1
Position Indication Mechanically, integrated, two-section
Running Time (Motor) default 150 s, variable 45…150 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Fluid chilled or hot water, up to 60% glycol
Controllable Flow Range 75°
Pipe Connection NPT female ends
Fluid Temp Range (Water) 0…250°F [-18…120°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Cv Range [Gpm] 17…47
Pipe Connection Type internal thread
Kvs Range [M³/H] 15…40 m³/h
Flow Characteristic modified linear
Servicing maintenance-free
Valve Body Nickel-plated brass body
Stem nickel-plated brass
Seat PTFE
Housing Material UL94-5VA
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 45 dB(A)
Body Pressure Rating 400 psi
Quality Standard ISO 9001
Ball chrome plated brass
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function Non fail-safe
Control Type Web MFT/Programmable
Fail-Safe NO

Specifications

SKUCS3353946
MPNB332L+NRX24-MFT
