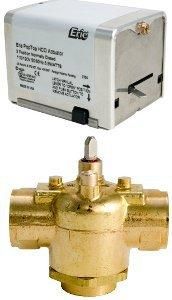

Schneider Electric VT3427G13B020
SKU: CS326619MPN: VT3427G13B020UPC/EAN: 711426637328
VB: 1 in, 3W Mix/Div, Zone, NPT, BR, 8 cv, 17 PSI, Act (AG13B020): Elec, 2Pos, SR, NC, 110-120 VAC, App, N1
$149.03
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 1 in/li>* Configuration: 3-Way Mixing/Diverting
- Type: Zone
- Connection: NPT
- Material Trim: Brass
- Flow Coefficient: 8 cv
- Control Media: Glycol 25 to 50% and Water
- Product Line: Schneider Electric
- Product Range: Erie PopTop
- Product Series: VT3
Product Alert: Not for use with steam- Close-Off Pressure: 17 PSI - Actuator Type: Electric - Control Signal: 2-Position (On/Off) - Loss of Power Type: Spring Return - Loss of Power Position: Normally closed - Power Input Voltage: 110 VAC, 115 VAC, 120 VAC - Leads and Connections: 18 in Appliance - Mechanical Movement: Rotary - Protection Rating: NEMA 1 Assembly Components:
- Valve Body: VT3427
- Valve Linkage: None, tool-less connection
- Actuator: AG13B020
- Actuator Range: Erie PopTop
Product Alert: Not for use with steam
Attributes
| Us Rated Supply Voltage | 110…120 V AC |
| Actuator | rotary |
| Ambient Air Temperature For Operation | 0-93.3 °C |
| Ambient Air Temperature For Storage | -40-71 °C |
| Body Material | forged brass |
| Control Type | automatic reset |
| Ip Degree Of Protection | IP10 |
| Motor Type | AC synchronous servo motor |
| Operating Fluid Temperature | 0-93 °C |
| Power Consumption In Va | 7.5 VA AC |
| Product Destination | zone valves |
| Product Or Component Type | valve-actuator assembly |
| Relative Humidity | 5-95 % non-condensing |
| Seat Leakage | Port A: Class IV (0.01 %) |
| Seat Material | Port A: brass |
| Switch Function | No |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54054_XXX |
Specifications
| SKU | CS326619 |
|---|---|
| MPN | VT3427G13B020 |
| UPC/EAN | 711426637328 |
