Eaton 1256A-6501

Name: Eaton 1256A-6501
Brand: Eaton
SKU: CS322156
Price: 642.51 USD
Availability: OutOfStock

SKU: CS322156MPN: 1256A-6501UPC/EAN: 782113822358

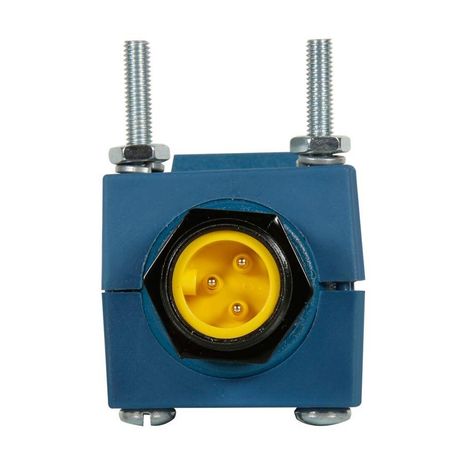

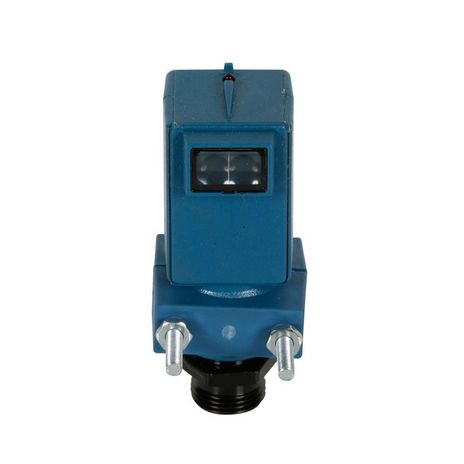

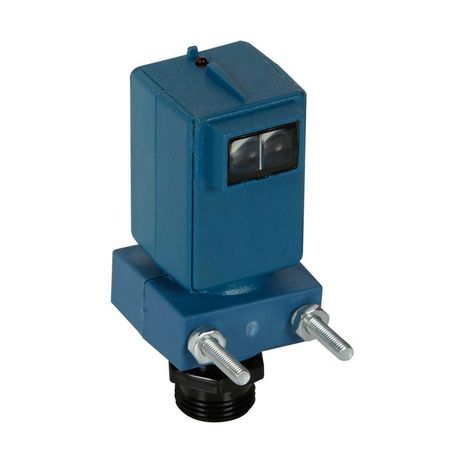

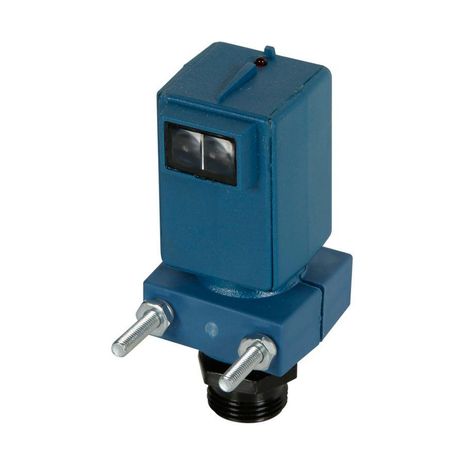

Eaton 55 series photoelectric sensor

Product Details

Eaton 55 Series Photoelectric Sensor, Photoelectric, Right Angle, Sensor distance: 70 Ft., Body: Noryl, Lens: Nylon enclosure, 50 mA max AC, L1 Switched, 50 mA at 132 Vac, 3 Pin Mini Connector, 90-132 Vac input, Reverse polarity, Thu-Beam

Attributes

Connection	3-pin mini connector
Contact Configuration	L1 switched
Contact Rating	50 mA at 132 Vac
Enclosure Material	Lens: nylon Body: noryl
Environmental Rating	NEMA 1, NEMA 3, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Input Voltage	90-132 Vac
Led Indicator	Output status: red
Maximum Ac Current	50 mA
Operating Mode	Thru-beam
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-22 FAH
Operating Temperature Min Uom	FAH
Protection	Reverse polarity
Sensor Type	Through beam
Switch Type	Photoelectric
