Turck NI5-EM12-Y1X-H1141
SKU: CS3177754MPN: NI5-EM12-Y1X-H1141Alternate Part #: 4010301UPC/EAN: 4047101090789
4010301 - FERRITE, BARREL, NAMUR, CON. M
$132.11
UnitAvailable on backorder
Product Details
Inductive Sensor
- Threaded barrel, M12 x 1
- Stainless steel, 1.4301
- DC 2-wire, nom. 8.2 VDC
- Output acc. to DIN EN 60947-5-6 (NAMUR)
- M12 x 1 male connector
- ATEX category II 1 G, Ex zone 0
- ATEX category II 1 D, Ex zone 20
- SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0
- SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
Attributes
| Ambient Temperature | -25…+70 °C |
| Approvals | ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc |
| Construction Size | M12 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Stainless steel, 1.4301 (AISI 304) |
| Mounting | Non-flush |
| Output Function | NAMUR |
| Protection Class | IP67 |
| Rated Switching Distance | 5 mm |
| Switching Frequency | 2.0 kHz |
Specifications
| SKU | CS3177754 |
|---|---|
| MPN | NI5-EM12-Y1X-H1141 |
| Alternate Part # | 4010301 |
| UPC/EAN | 4047101090789 |
You may also like
Turck BI2-EM12-Y1X-H1141
$131.00Unit
Turck NI5-M12-Y1X-H1141
$128.17Unit
Turck NI10-EM18-Y1X-H1141
$132.11Unit
Turck BI5-EM18-Y1X-H1141
$131.00Unit
Turck NI15-EM30-Y1X-H1141
$142.36Unit
Turck BI10-EM30-Y1X-H1141
$142.36Unit
Turck BI5-M18E-Y1X-H1141
$128.17Unit

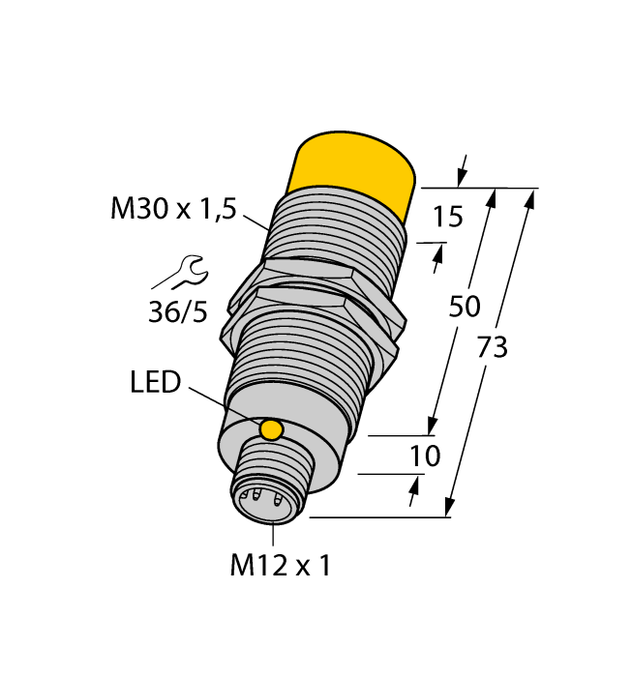

Turck NI20-M30-Y1X-H1141
$155.03Unit
Turck BI5-M18-Y1X-H1141
$128.17Unit

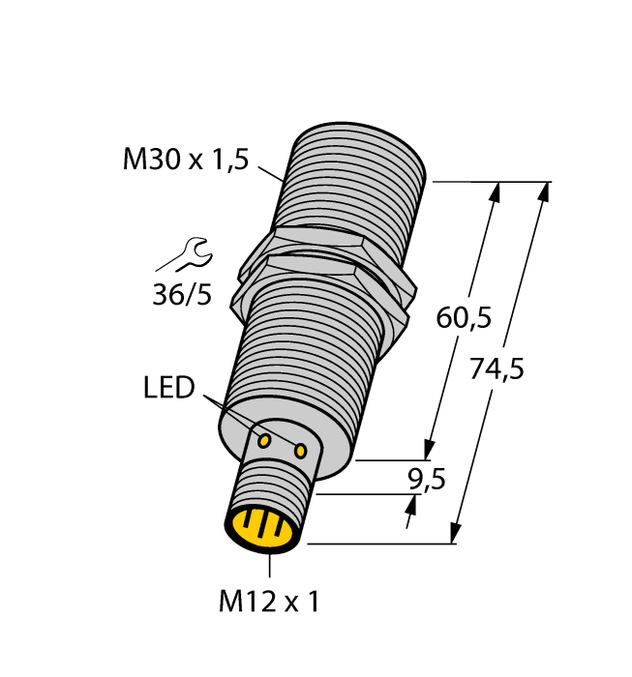

Turck BI10-M30-Y1X-H1141/S56
