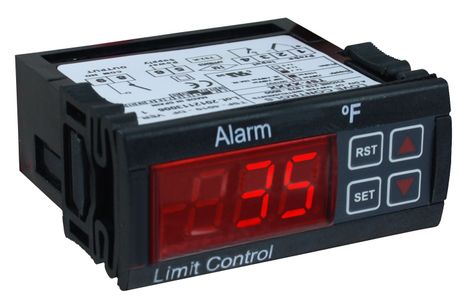

Dwyer TSF-4040
SKU: CS3177046MPN: TSF-4040Alternate Part #: 124558-06
TSF-4040 LIMIT CONT TEMP
$137.51
UnitAvailable on backorder
Product Details
Thermocouple limit control, type J/K/S input, 24 VAC/VDC, °F.
Attributes
| Accuracy | ±1% FS. |
| Commodity Code | R0DA |
| Compliance | CE, FM, cURus. |
| Control Type | ON/OFF; manual/automatic reset. |
| Display | 3-digit, red, ½” (12.7 mm) digits, plus sign. |
| Front Panel Rating | IP64 (NEMA 3R). |
| Horsepower Rating Hp | 1 HP. |
| Input | Type J, K or S thermocouple. |
| Memory Backup | Nonvolatile memory. |
| Output | SPDT relay rated 16 A @ 240 VAC resistive. |
| Power Consumption | 4 VA. |
| Power Requirement | 115 VAC, 230 VAC, 12 VAC/VDC or 24 VAC/VDC (depending on model). |
| Probe Range | 32 to 999°F (0 to 700°C) for Type J thermocouple; 32 to 999°F (0 to 999°C) for type K or S thermocouples. |
| Resolution | 1°. |
Specifications
| SKU | CS3177046 |
|---|---|
| MPN | TSF-4040 |
| Alternate Part # | 124558-06 |
