Turck BIM-UNT-AP6X-0.3-RS4T
SKU: CS3176258MPN: BIM-UNT-AP6X-0.3-RS4TAlternate Part #: 46857260
46857260 - TRANS., RECT., DC, PIGTAIL M1
$130.79
UnitAvailable on backorder
Product Details
Magnetic Field Sensor
For Pneumatic Cylinders
- For T-groove cylinders without mounting accessories
- Optional accessories for mounting on other cylinder designs
- One-hand mounting possible
- Stable mounting
- Magneto-resistive sensor
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- Pigtail with male end, M12 x 1
Attributes
| Ambient Temperature | -25…+70 °C |

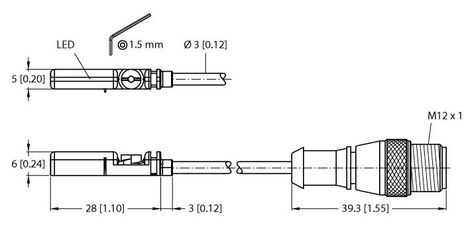

| Construction Size | 28 x 5 x 6 mm, UNT |
| Customs Tariff Number | 85365019900.0000 |
| Cylindrical Design | Dovetail groove cylinder, T-groove cylinder, Round cylinder, Tie-rod cylinder |
| Design | Rectangular |
| Ecl Ss Code V5 1 4 | 27270104 -/- Magnetic inductive proximity switch |
| Electrical Connection | Cable with connector, M12 × 1 |
| Housing Material | Plastic, PP |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
Specifications
| SKU | CS3176258 |
|---|---|
| MPN | BIM-UNT-AP6X-0.3-RS4T |
| Alternate Part # | 46857260 |
