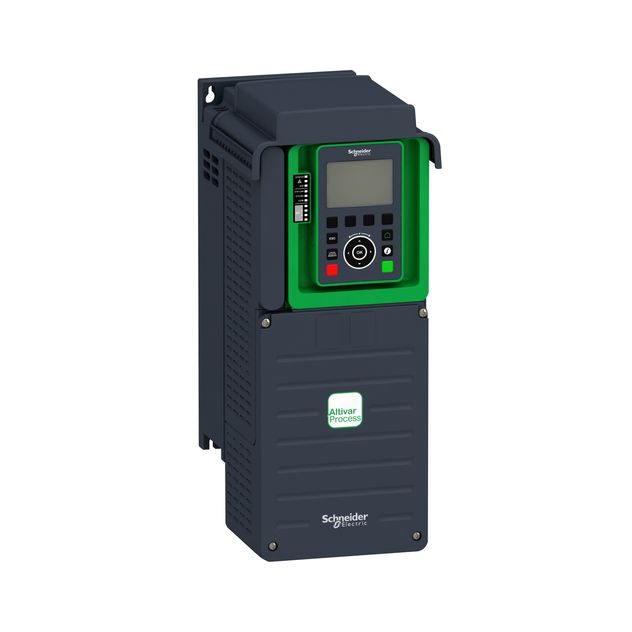

Square D ATV630U55N4

Name: Square D ATV630U55N4
Brand: Square D
SKU: CS3175127
Price: 2411.79 USD
Availability: OutOfStock

SKU: CS3175127MPN: ATV630U55N4

variable speed drive, Altivar Process ATV600, ATV630, 5.5kW, 7.5hp, 380 to 480V, IP21, UL type 1

Square D ATV630U07M3, ATV630U15M3, ATV630U22M3, ATV630U22N4, ATV630U30M3, ATV630U30N4, ATV630U40N4, ATV630U55N4

$2,411.79

Unit

Available on backorder

Quantity

remove

add

Product Details

Variable Speed Drive ATV630

Wall Mount* Supply Frequency: 50...60 Hz - 5...5 %* Us Rated Supply Voltage: 380...480 V - 15...10 %* 144mm W x 350mm H x 203mm D

Attributes

Acceleration And Deceleration Ramps	linear adjustable separately from 0.01…9999 s
Ambient Air Temperature For Storage	-40-70 °C
Analogue Input Number	3.0000
Analogue Output Number	2.0000
Asynchronous Motor Control Profile	constant torque standard# #variable torque standard# #optimized torque mode
Braking To Standstill	by DC injection
Communication Port Protocol	Modbus serial# #Modbus TCP# #Ethernet
Data Format	8 bits, configurable odd, even or no parity
Device Short Name	ATV630
Discrete Input Logic	16 preset speeds
Discrete Input Number	8.0
Enclosure Mounting	wall mounted
Isolation	between power and control terminals
Marking	CE
Maximum Output Frequency	500 kHz
Motor Slip Compensation	can be suppressed# #not available in permanent magnet motor law# #automatic whatever the load# #adjustable
Mounting Mode	wall mount
Noise Level	54.5 dB
Nominal Switching Frequency	4 kHz
Operating Position	vertical ± 10 degree
Output Voltage	<= power supply voltage
Overvoltage Category	III
Physical Interface	Ethernet# #2-wire RS 485
Pollution Degree	2.0
Product Certifications	DNV-GL# #CSA# #ATEX zone 2/22# #ATEX INERIS# #TÜV# #UL
Product Destination	synchronous motors# #asynchronous motors
Product Or Component Type	variable speed drive
Product Specific Application	process and utilities
Prospective Line Isc	50 kA
Quantity Per Set	1
Range Of Product	Altivar Process ATV600
Regulation Loop	adjustable PID regulator
Relay Output Number	3.0000
Speed Drive Output Frequency	0.1-500 Hz
Standards	UL 508C# #EN/IEC 61800-3# #EN/IEC 61800-3 environment 1 category C2# #EN/IEC 61800-3 environment 2 category C3# #EN/IEC 61800-5-1# #IEC 61000-3-12# #IEC 60721-3# #IEC 61508# #IEC 13849-1
Synchronous Motor Control Profile	permanent magnet motor# #synchronous reluctance motor
Transmission Frame	RTU
Transmission Rate	10, 100 Mbits# #4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Type Of Cooling	forced convection
Type Of Polarization	no impedance
Variant	standard version
Volume Of Cooling Air	38 m3/h
