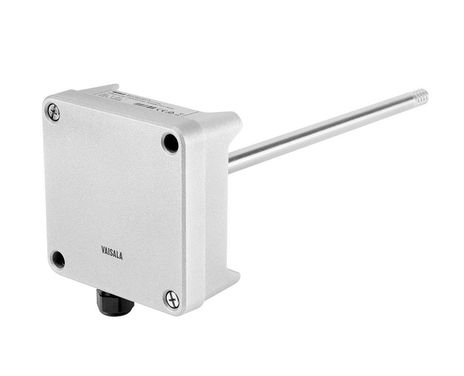

Vaisala HMD62

Vaisala HMD60 Series Duct-Mount HUMICAP® Humidity and Temperature Transmitters are designed for demanding HVAC and light industrial applications. The combination of high accuracy, stability and reliable operation makes this series an ideal choice.

The NEMA4X/IP66 rated housing combined with our state-of-the-art HUMICAP®R2 sensor ensure long-term stability and minimize maintenance over the product lifetime.

HMD62 model includes the following: • Relative Humidity Measurement 0 … 100% • Temperature Measurement -40 … +80 °C (-40 … +176 °F), default analog output configured for -20 … +80 °C (-4 … +176 °F) • Loop-powered, 4...20mA analog outputs

A standard ISO 9001 factory calibration certificate is included in delivery. ISO 17025 accredited calibration is available upon request.

Alternatively, the following models are available: • HMD65: Humidity and Temperature, 2 analog voltage outputs and Digital output • TMD62: Temperature, 1 analog output • HMD60: Humidity and Temperature, configurable outputs and scale, short probe option (not available in the Online Store) • TMD60: Temperature, 1 analog output (configurable scale), short probe option (not available in the Online Store)

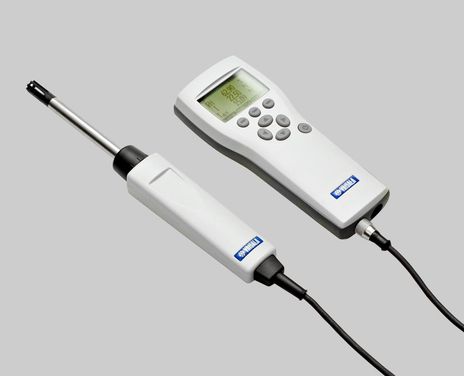

HMD62 is compatible with Vaisala Insight software and the HM70 Hand-held Humidity and Temperature Meter for single point field calibration.

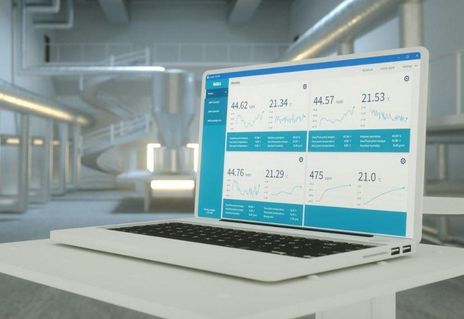

For special scaling and other additional configuration and adjustment options, you can use the convenient Vaisala Insight PC software for Windows® (download for free at www.vaisala.com/insight).

HMD62 replaces the discontinued HMD60Y and HMD60U.
