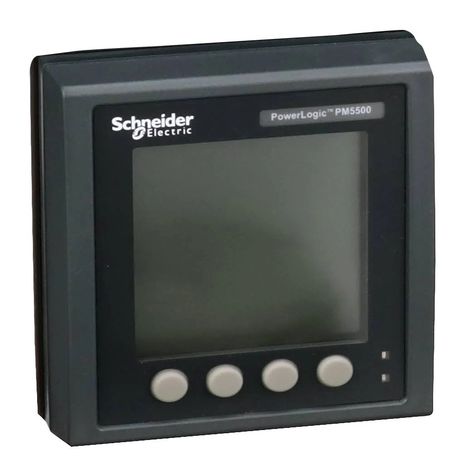

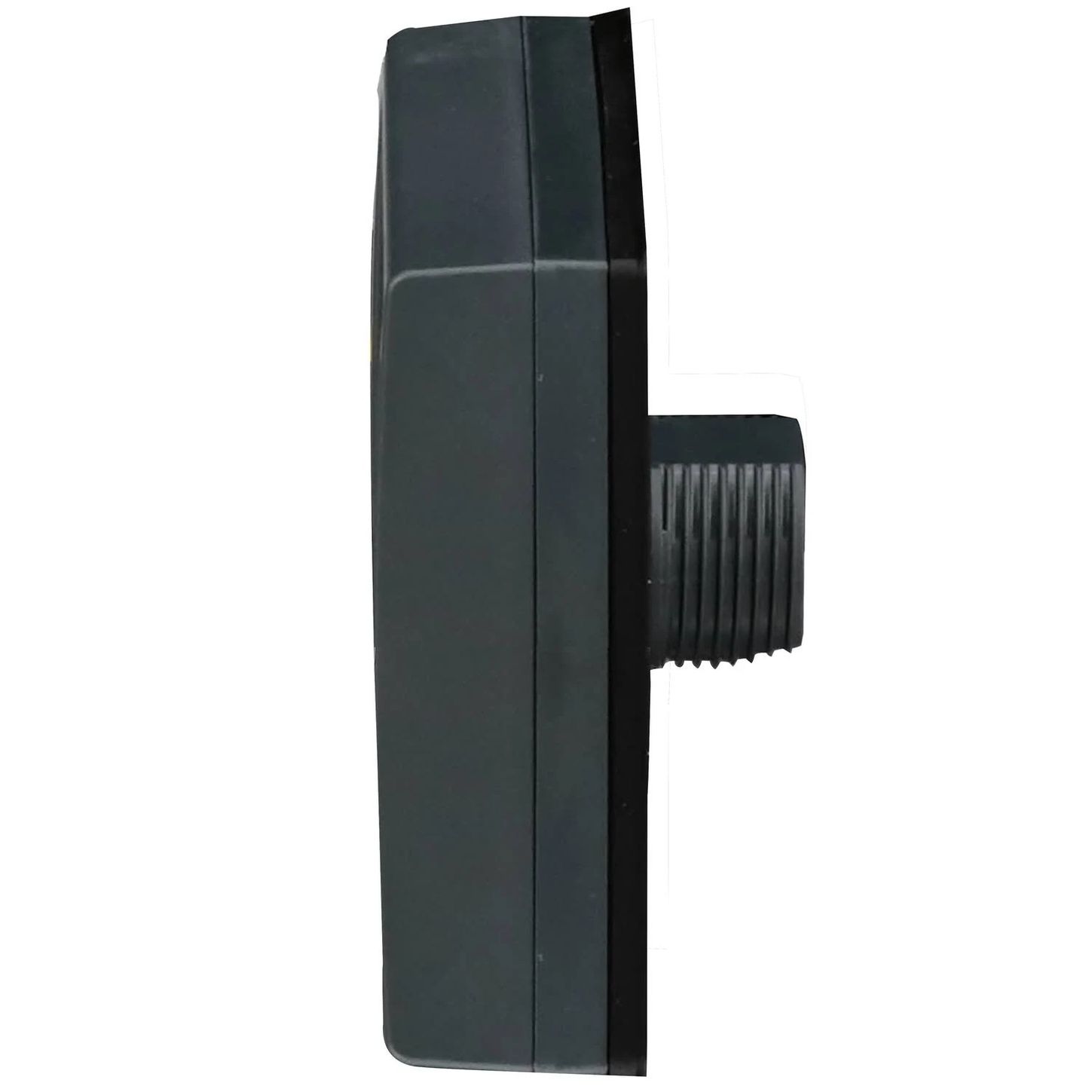

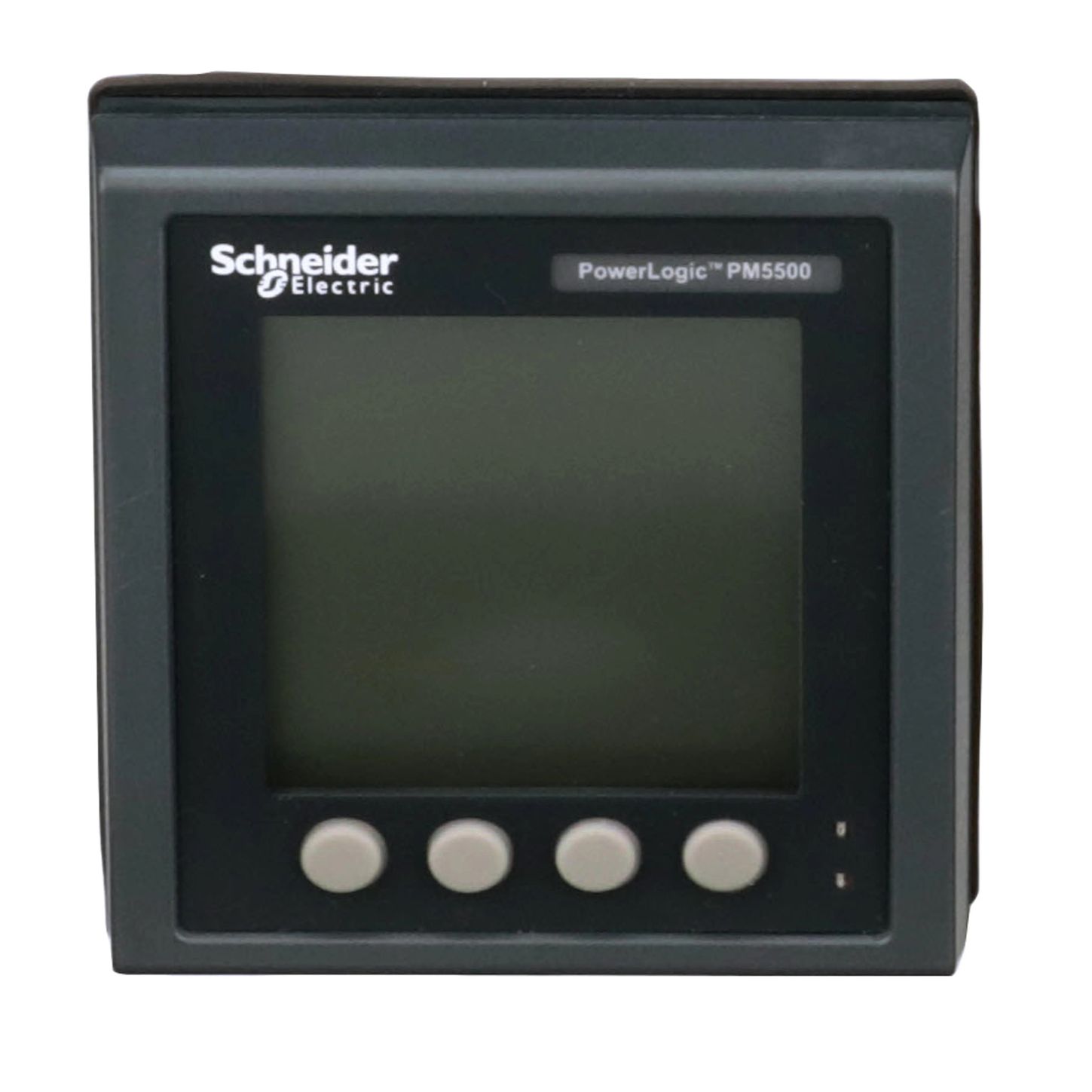

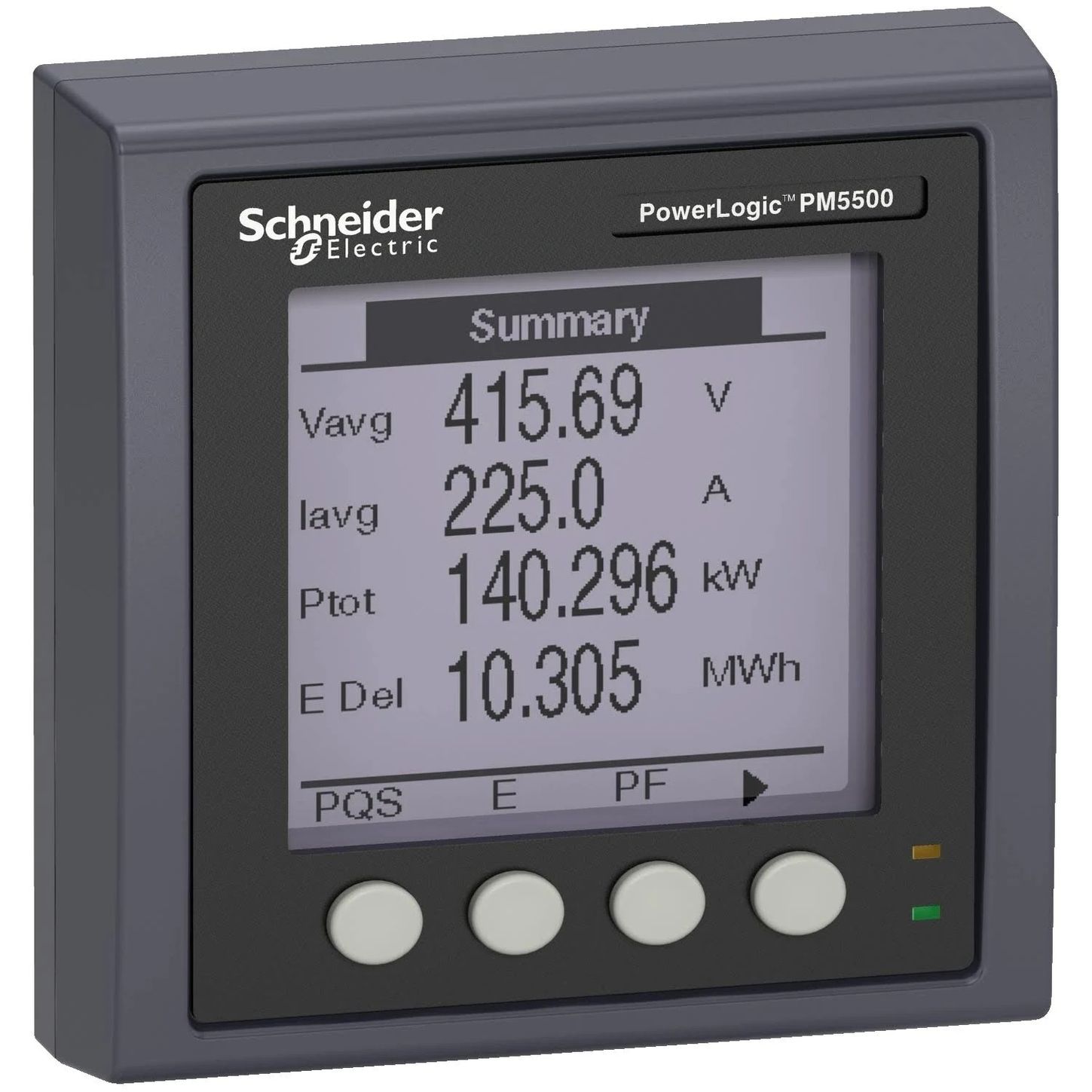

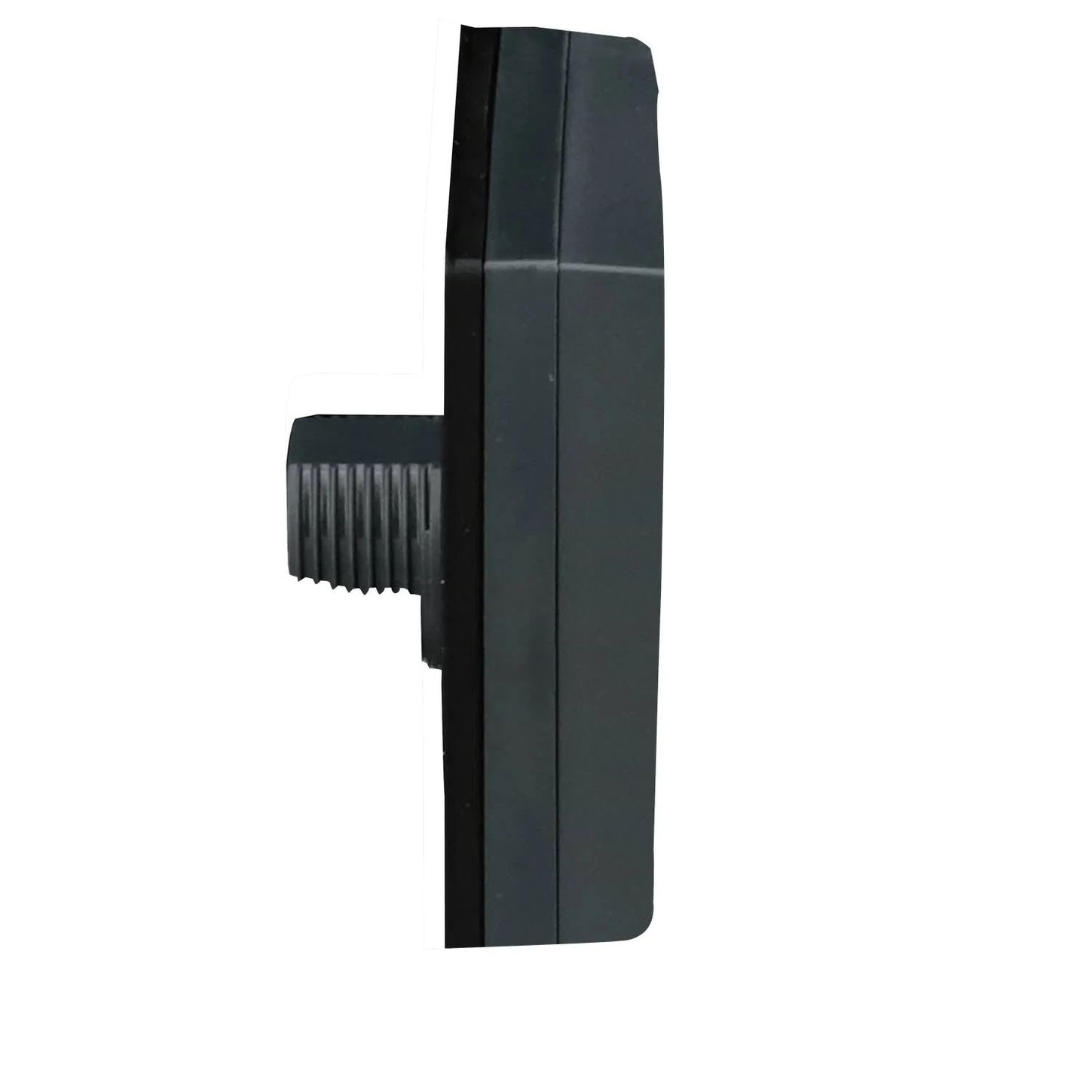

Square D METSEPM5563RD

Name: Square D METSEPM5563RD
Brand: Square D
SKU: CS3166145
Availability: OutOfStock

SKU: CS3166145MPN: METSEPM5563RD

power meter PowerLogic PM5563, 2 ethernet, up to 63th Harmonic, 1,1MB 4DI/2DO 52 alarms, with remote display

Product Details

PWR MTR 63H 8T CL0.2 RS ET

In Rated Current	1 A# #5 A
In Rated Current 1	1 A# #5 A
Ambient Air Temperature For Storage	-40-85 °C
Communication Gateway	Ethernet/serial
Data Recording	time stamping# #data logs# #maintenance logs# #event logs# #alarm logs# #min/max of instantaneous values
Device Application	gateway# #power monitoring# #WAGES metering# #multi-tariff
Device Short Name	PM5563
Display Resolution	128 x 128 pixels
Display Type	remote LCD display
Ethernet Service	SNTP client# #SNMP-Traps
Frequency Measurement Range	45-65 Hz
Measurement Current	5-10000 mA
Memory Capacity	1.1 MB
Metering Type	measured neutral current# #calculated ground current
Mounting Mode	clip-on
Network Frequency	50 Hz# #60 Hz
Operating Altitude	3000 m
Poles Description	1P + N# #3P# #3P + N
Product Name	PowerLogic PM5000
Product Or Component Type	power meter
Range	PowerLogic
Sampling Rate	128 samples/cycle
Standards	EN 50470-3# #EN 50470-1# #IEC 62053-22# #IEC 60529# #UL 61010-1# #IEC 62053-24# #IEC 61557-12# #ANSI C12.20
Web Services	diagnostic via predefined web pages# #real time viewing of data# #web server# #alarm notification by e-mail

SKU	CS3166145
MPN	METSEPM5563RD
