Turck BI8U-MT18-AP6X-H1141
SKU: CS3162587MPN: BI8U-MT18-AP6X-H1141Alternate Part #: 1644730UPC/EAN: 4047101133530
1644730 - UPROX, BARREL, DC, CON. M12
$168.11
UnitAvailable on backorder
Product Details

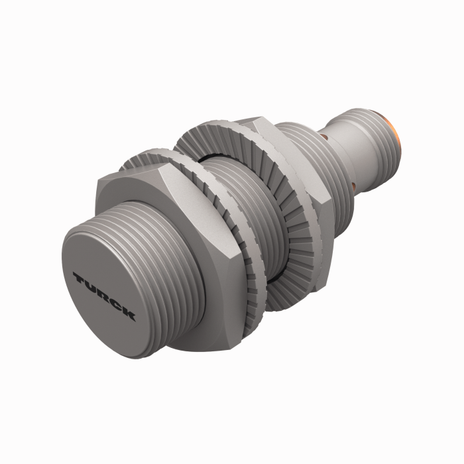

Inductive Sensor
With Extended Switching Distance

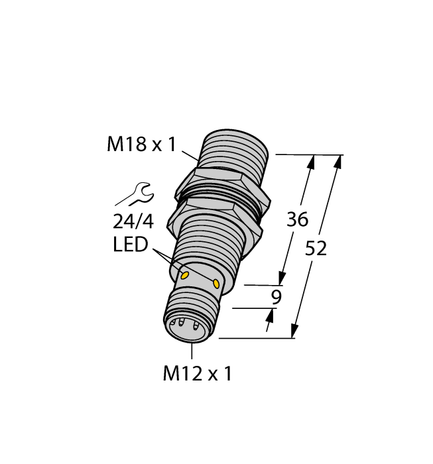

- Threaded barrel, M18 x 1
- Brass, PTFE-coated
- Factor 1 for all metals
- Protection class IP68
- Resistant to magnetic fields
- Large switching distance
- Recessed mountable
- DC 3-wire, 10…30 VDC
- NO contact, PNP output
- M12 x 1 male connector
Attributes
| Ambient Temperature | -30…+85 °C |
| Construction Size | M18 x 1 |
| Customs Tariff Number | 85365019900.0000 |
| Design | Threaded barrel |
| Ecl Ss Code V5 1 4 | 27270101 -/- Inductive proximity switch |
| Electrical Connection | Connector, M12 × 1 |
| Housing Material | Metal, CuZn, PTFE-coated |
| Mounting | Flush |
| Operating Voltage | 10…30 VDC |
| Output Function | NO contact, PNP |
| Protection Class | IP68 |
| Rated Switching Distance | 8 mm |
| Special Feature | uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated |
| Switching Frequency | 1.50 kHz |
Specifications
| SKU | CS3162587 |
|---|---|
| MPN | BI8U-MT18-AP6X-H1141 |
| Alternate Part # | 1644730 |
| UPC/EAN | 4047101133530 |
