Schneider Electric VU-8303-686-5-16
SKU: CS3151571MPN: VU-8303-686-5-16UPC/EAN: 711426032727

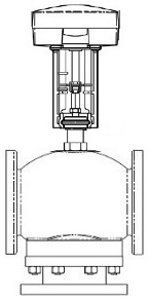

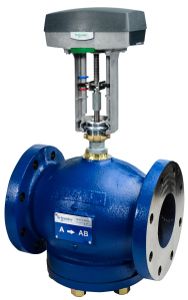

VB: 6 in, 3W Mix/Div, Globe, FLG, UC, BR, 500 cv, 35 PSI, Act (M1500A): Elec, Float/Prop, NSR, 24 VAC/VDC, 20-29 VDC, TB, 337 lbf, Linear, N1, FORTA
$6,462.01
UnitAvailable on backorder
Product Details
Valve Assembly:
- Body Size: 6 in
- Configuration: 3-Way Mixing/Diverting
- Type: Globe
- Connection: Flanged
- Stem Flow Action: Stem up, mixing closed A to AB, diverting closed AB to A
- Material Trim: Brass
- Flow Coefficient: 500 cv
- Close-Off Pressure: 35 PSI
- Actuator Type: Electric
- Control Signal: Floating, Proportional
- Control Signal Range: 0 to 10 VDC, 2 to 10 VDC, 4 to 20mA with 500 ohm resistor
- Loss of Power Type: Non-Spring Return
- Loss of Power Position: Fail in place
- Power Input Voltage: 24 VAC/VDC, 20 to 29 VDC
- Leads and Connections: Terminal Block
- Force: 337 lbf
- Mechanical Movement: Linear
- Protection Rating: NEMA 1
Assembly Components:
- Valve Body: VB-8303-0-5-16
- Valve Range: Balanced Plug Technology
- Valve Linkage: AV-822
- Actuator: M1500A
- Actuator Range: FORTA
Product Alert: Not for use with steam.
Attributes
| Us Rated Supply Voltage | 20…29 V DC 24 V AC/DC |
| Actuator | linear |
| Ambient Air Temperature For Operation | -10-50 °C |
| Ambient Air Temperature For Storage | -25-65 °C |
| Analogue Input Range | 0…10 V DC 4…20 mA with 500 Ohm resistor |
| Body Material | cast iron |
| Control Type | manual override with 5/32 allen wrench |
| Force Lbf | 337 lbf |
| Force N | 1500 N |
| Motor Type | brushless DC motor |
| Operating Fluid Temperature | -7-138 °C |
| Output Current | 30 mA |
| Output Voltage | 16 V DC |
| Product Destination | globe valve |
| Product Or Component Type | valve-actuator assembly |
| Relative Humidity | 15-95 % non-condensing |
| Seat Leakage | Port A: Class III (0.1 %) |
| Seat Material | Port A: brass |
| Switch Function | 2 SPDT (optional) |
| Targeted Region | North America. |
| Taxoclass Id | PTC_D54038_XXX |
Specifications
| SKU | CS3151571 |
|---|---|
| MPN | VU-8303-686-5-16 |
| UPC/EAN | 711426032727 |
