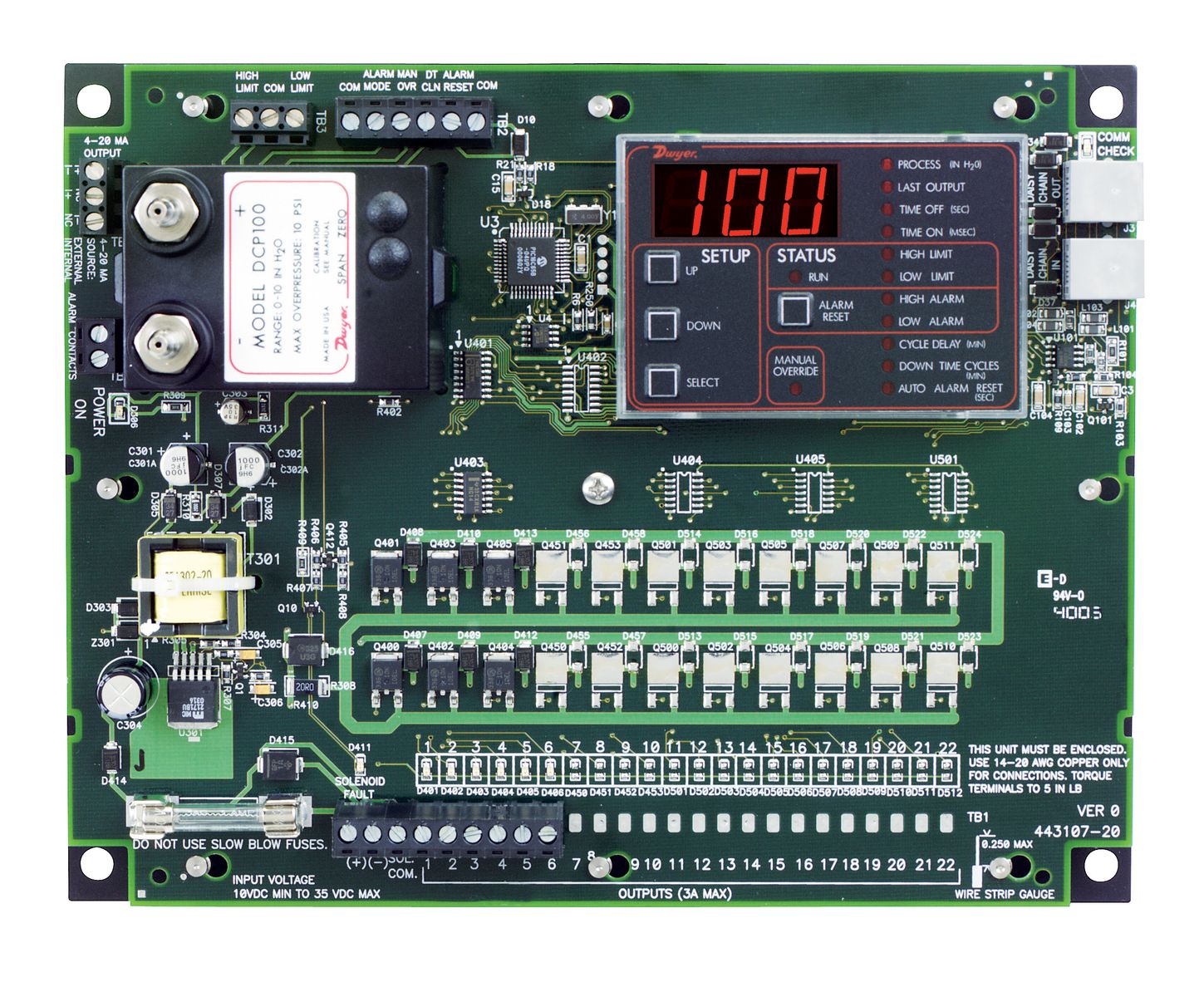

Dwyer DCT1006DC
SKU: CS3150902MPN: DCT1006DCAlternate Part #: 100506-05
FINAL ASSY DCT 1006DC
$413.81
UnitAvailable on backorder
Product Details
Dust collector timer controller, 6 channels.
Attributes
| Accuracy | ±1.5% F.S. @ 73°F (22.8°C). |
| Agency Approval | CE. |
| Alarm Contacts | 1.5A inductive load, 3A resistive load @ 30 VAC or 40 VDC. |
| Commodity Code | 0505 |
| Fuse | 3 A @ 250 VAC. |
| Off Time | 1 second to 255 seconds, 1 second steps. |
| Off Time Accuracy | ±1% of the value or ±50 msec, whichever is greater. |
| On Time | 10 msec to 600 msec, 10 msec steps. |
| On Time Accuracy | ±10 msec. |
| Output Channels | 6, 10 & 22 channels. |
| Output Signal | 4-20 mA. |
| Power Consumption | 5 W. |
| Power Requirement | 10-30 VDC. |
| Pressure Limit | 10 psi (68.95 kPa). |
| Pressure Limits Differential | 10 psi (68.95 kPa). |
| Pressure Range | 10” w.c. or 20” w.c. |
| Process Connection | Two barbed connections for use with ⅛” (3.18 mm) or 3/16” (4.76 mm) I.D. tubing. |
| Solenoid Supply | 3A maximum per channel. |
| Storage Temperature Limits | -40 to 176°F (-40 to 80°C). |
Specifications
| SKU | CS3150902 |
|---|---|
| MPN | DCT1006DC |
| Alternate Part # | 100506-05 |
