Dwyer 629C-04-CH-P2-E5-S1

Name: Dwyer 629C-04-CH-P2-E5-S1
Brand: Dwyer
SKU: CS3143939
Price: 513.39 USD
Availability: InStock

SKU: CS3143939MPN: 629C-04-CH-P2-E5-S1Alternate Part #: 101871-04

629C-04-CH-P2-E5-S1

$513.39

Unit

2 in stock

Quantity

remove

add

Product Details

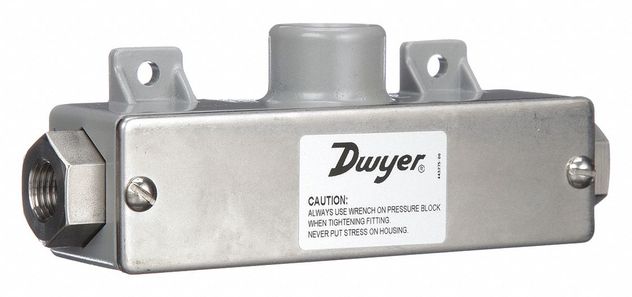

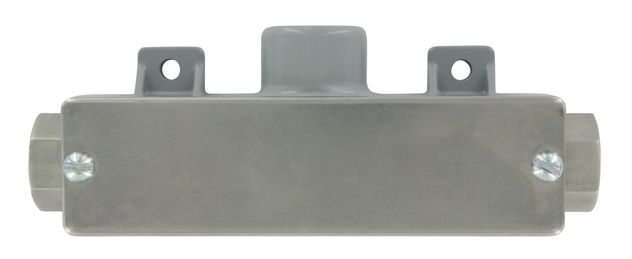

Wet/wet differential pressure transmitter, range 50 psid, working pressure 100 psi, over pressure 250 psi.

Accuracy	±0.5% FS (includes linearity, hysteresis & repeatability)
Agency Approval	CE.
Commodity Code	0175
Compensated Temperature Limits	0 to 175°F (-18 to 79°C).
Current Consumption	28 mA (max).
Display	Optional 4-½ digit LCD field attachable display.
Electrical Connection	Removable terminal block; ½” female NPT conduit.
Enclosure Rating	Designed to meet NEMA 4X (-RS maintains NEMA 4X on sensors and housing).
Loop Resistance	Current output: 0 to 1250 Î© (max), Rmax = 50(Vps-10); Voltage output: Minimum load resistance = 5 kÎ©.
Mounting Orientation	Not position sensitive.
Output Signal	2-wire: 4 to 20 mA; 3-wire: Field selectable 0 to 5, 1 to 5, 0 to 10, or 2 to 10 VDC.
Power Requirement	2-wire: 10 to 35 VDC; 3-wire: 13 to 35 VDC or isolated 16 to 33 VAC (reverse polarity protected).
Pressure Limit	See chart on catalog page.
Process Connection	¼” female or male NPT.
Response Time	400 msec.
Service	Compatible gases and liquids.
Stability	±1% FS/year.
Thermal Effect	Avg 0.04%/°F (0.072%/°C) (includes zero and span).
Wetted Material	Without valve: 316, 316L SS. Additional wetted parts with valve option: Buna-N, silicone grease, PTFE, brass 360, copper, and reinforced copolymer.
Zero And Units	Push buttons inside conduit enclosure.
