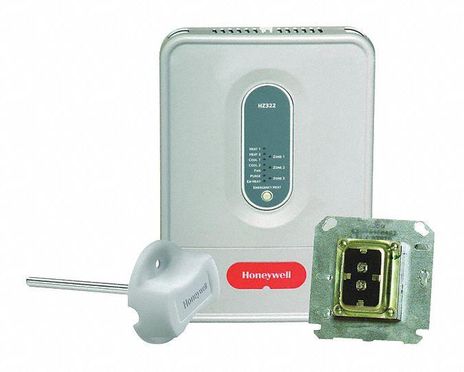

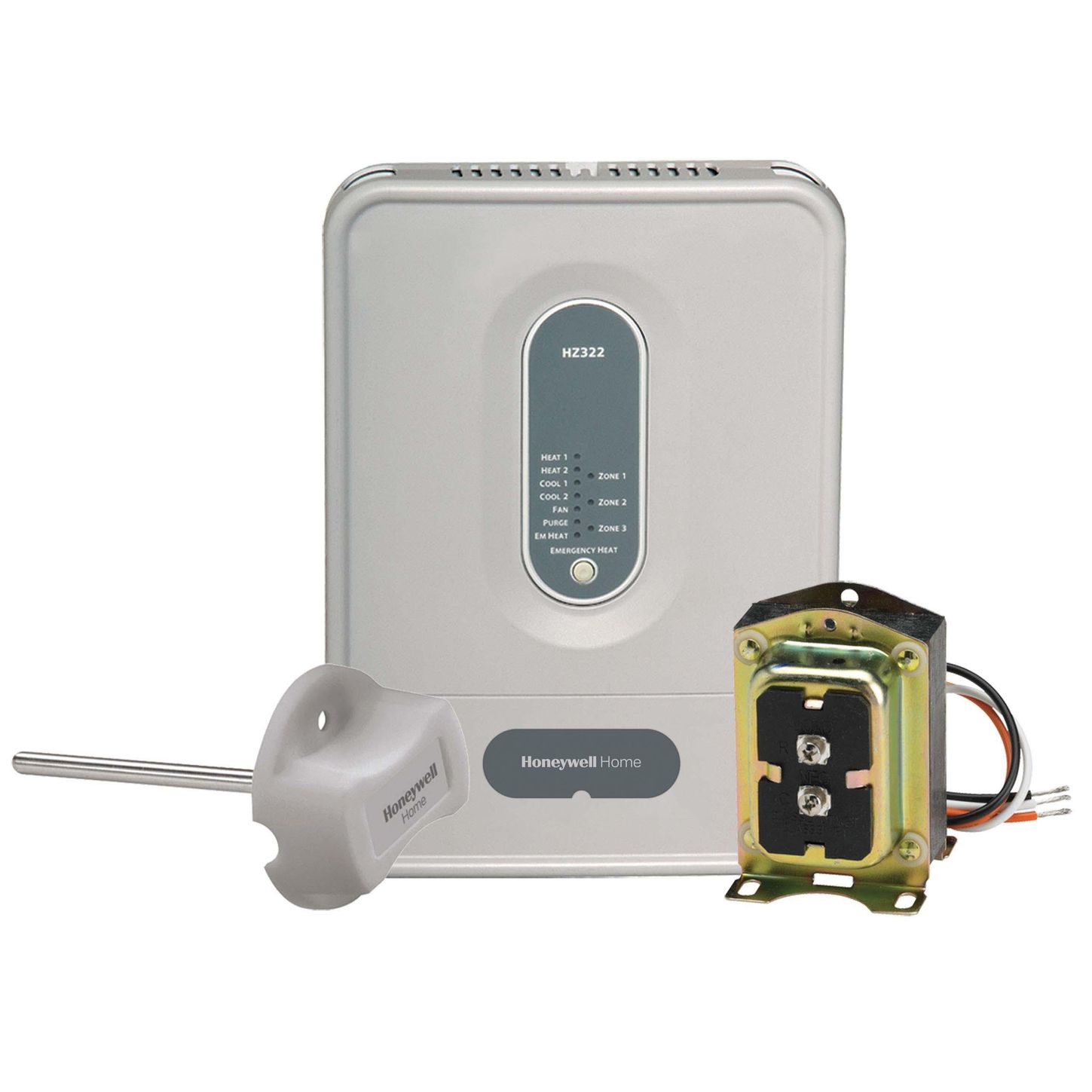

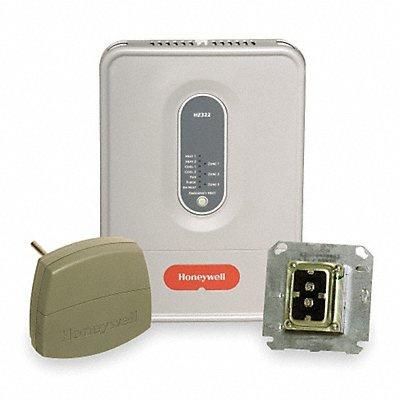

Resideo HZ322K

TrueZONE® Kit - DATS/Transform/HZ322 Pnl

TrueZONE(R) Control Kit Panel for Conventional and Heat Pump Applications up to 3 Zones 2H/2C Voltage (AC) 24 Height (In.) 11 ½ in Width (In.) 8 in Depth (In.) 2 in Output Amps 10 VA Inrush Amps - Connection Push-Button Terminals Terminal Designations Three Of M1 M4 M6 R C W1/E W2 Y1 Y2 G O/B L One Of Rh Rc W1/E W2 Y1 Y2 G O B DS/BK R C DATS DATS Rotation Angle (Deg.) - Torque (In.-Lbs.) - Timing (Sec.) - Ambient Temp Range -20 to 150
