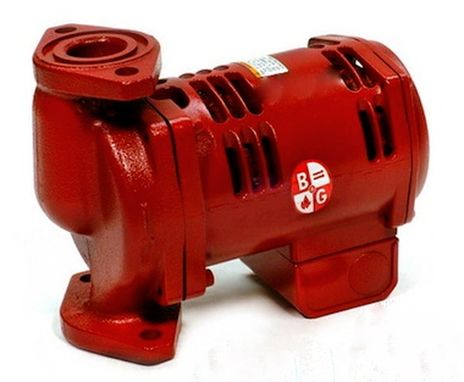

Bell & Gossett 1BL033

1BL033 Bell \& Gossett PL-55 Pump ⅖ HP Motor 230V

The 1BL033 Bell \& Gossett PL-55 Pump ⅖ HP 230/60/1. Motor for hydronic heating and cooling in closed loop systems. The Model PL-55 is permanently lubricated with a ⅖ HP, 3250 RPM, 230/60/1 three phase motor. Flanges available separately in ¾” through 1-½” IPS.

Applications:

Residential and light commercial heating and potable water systems.

• B\&G’s powerful, dry-motor design delivers exceptional performance
• 25% more efficient than competition
• Precision-machined and balanced alloy steel rotor for superior performance.
• Solid “Stiff-Shaft” design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
• XL-11™ Precision-Crafted Bearing System
• Permanently oil lubricated
• Completely maintenance free
• Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions
• Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation

• Double sided stainless steel neck ring for optimum efficiency

  Operating Data: Maximum Working Pressure: 150 PSI (10.3 bar) Maximum Operating Temperature: 225*F (107*C)
