Dwyer DPG-210
SKU: CS3091816MPN: DPG-210Alternate Part #: 102048-09
DPG-210 3000 PSI TRANS
$672.69
UnitAvailable on backorder
Product Details

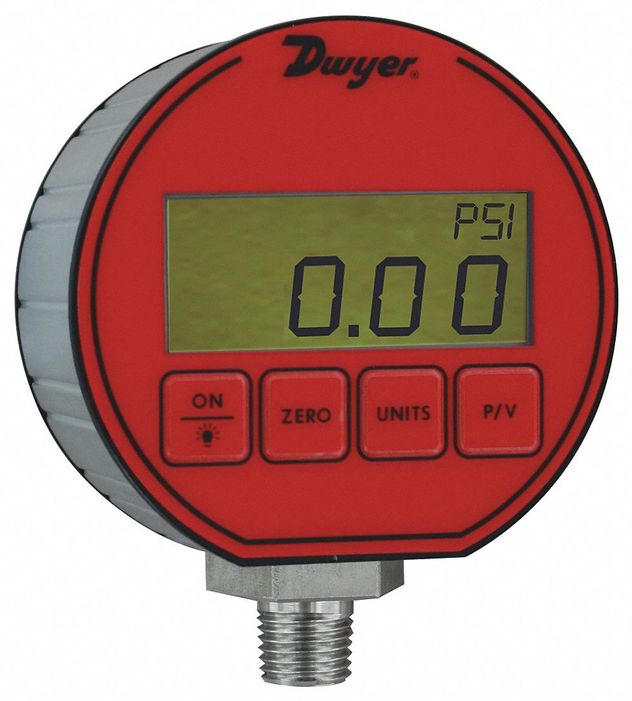

Digital pressure gage, selectable engineering units: 3000 psig, 210.9 kg/cm², 206.9 bar, 6108” Hg, 6921 ft w.c., 6745 ft seawater @ 4°C.
Attributes
| Accuracy | 0.25% F.S. ±1 least significant digit. (Includes linearity, hysteresis, repeatability). |
| Commodity Code | 1803 |
| Display | 4 digit (.425” H x .234” W digits). |
| Electrical Connection | 3 ft (.91 m) cable. |
| Electrical Rating | 0.5 A @ 125 VAC resistive, 1 A @ 24 VDC. |
| Enclosure Rating | Designed to meet NEMA 4X (IP66). |
| Housing | Black polycarbonate front & back cover, anodized aluminum extruded housing with recessed grooves, polycarbonate overlay, Buna-N O-rings, 316L SS sensor construction. |
| Loop Resistance | 600 ohms maximum. |
| Mounting Orientation | Mount in any position. |
| Output Signal | 4-20 mA. |
| Power Consumption | 0.8 W max. |
| Power Requirement | 12-24 VAC ± 20% 50-400 Hz, 12-24 VDC ±20%. |
| Pressure Limit | 2x pressure range for models 1000 psi; 5000 psi for 3000 psi range; 7500 psi for 5000 psi range. |
| Process Connection | ¼” male NPT. |
| Relay Differential | 1 least significant digit. |
| Service | Liquids and non-combustible compatible gases. |
| Set Point Adjustment | Via menu. |
| Size | 3.00” OD x 1.90” deep (not including cables). |
| Switch Type | 2 SPDT Form C contacts. |
| Thermal Effect | Between 70 to 158°F = 0.016%/°F. Between 0 to 70°F = 0.026%/°F. |
| Wetted Material | Type 316L SS. |
Specifications
| SKU | CS3091816 |
|---|---|
| MPN | DPG-210 |
| Alternate Part # | 102048-09 |
