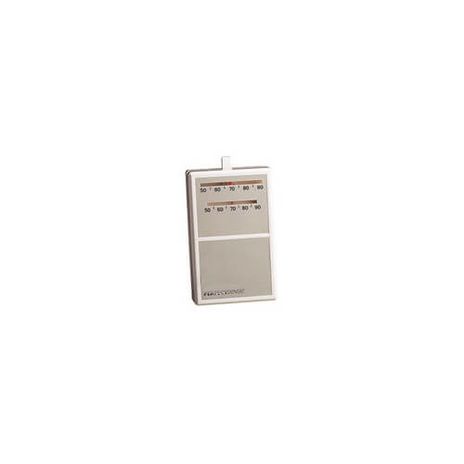

Robertshaw PS988-1R

NON-COMMUNICATING STAT - REED SWITCH THERMOSTAT

The 900 series mechanical thermostats are made up of a simple two-piece design, so you save time at installation. The large display offers accurate room temperature measurement. Wall plates are also available to mask any unsightly marks left by previous thermostats. Install it with confidence.

Features:

• Electrical rating: 24-30 VAC, and 250-750 mV 1.5 amp maximum load (all terminals combined)
• Temperature control range: 50° to 90°F (10° to 32°C)
• Accuracy +/- 2°F
• Adjustable Heat Anticipation: 0.1 to 1.2Amps
• Power Consumption: Less than 1 mA @ 24VAC
• Power Source: 24 Volt AC
• Switch Action: Reed Switch
• Comments: UL Listed
