Eaton E57EAL4T110SP

Name: Eaton E57EAL4T110SP
Brand: Eaton
SKU: CS3081084
Price: 184.11 USD
Availability: OutOfStock

SKU: CS3081084MPN: E57EAL4T110SPUPC/EAN: 782113908595

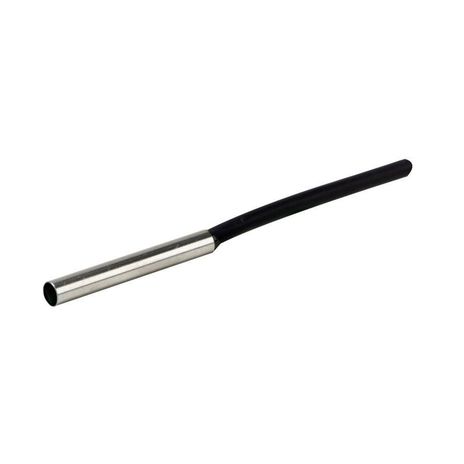

Eaton E57 inductive proximity sensor

Product Details

E57 Small Diameter Series Inductive Proximity Sensor Enclosure, 0.157 dia, dist 0.8 mm200 mA max DC, NPN Open Collector, NO, 200 mA at 30 Vdc, 6.6 Ft.(2m) Cable, 10-30 Vdc input, \<1% accuracy, Short circuit protected, Shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 1%
Actuator Function	Shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	NPN open collector, NO
Contact Rating	200 mA at 30 Vdc
Enclosure	NEMA 4 NEMA 6 NEMA 12 NEMA 6P NEMA 4X NEMA 13
Enclosure Material	Stainless steel
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
Input Voltage	10-30 Vdc
Led Indicator	Output status: red
Maximum Dc Current	200 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Protection	Short circuit protected
Sensor Type	Inductive proximity
Series	E57
Type	Inductive Proximity Sensor; Tubular; Small Diameter
