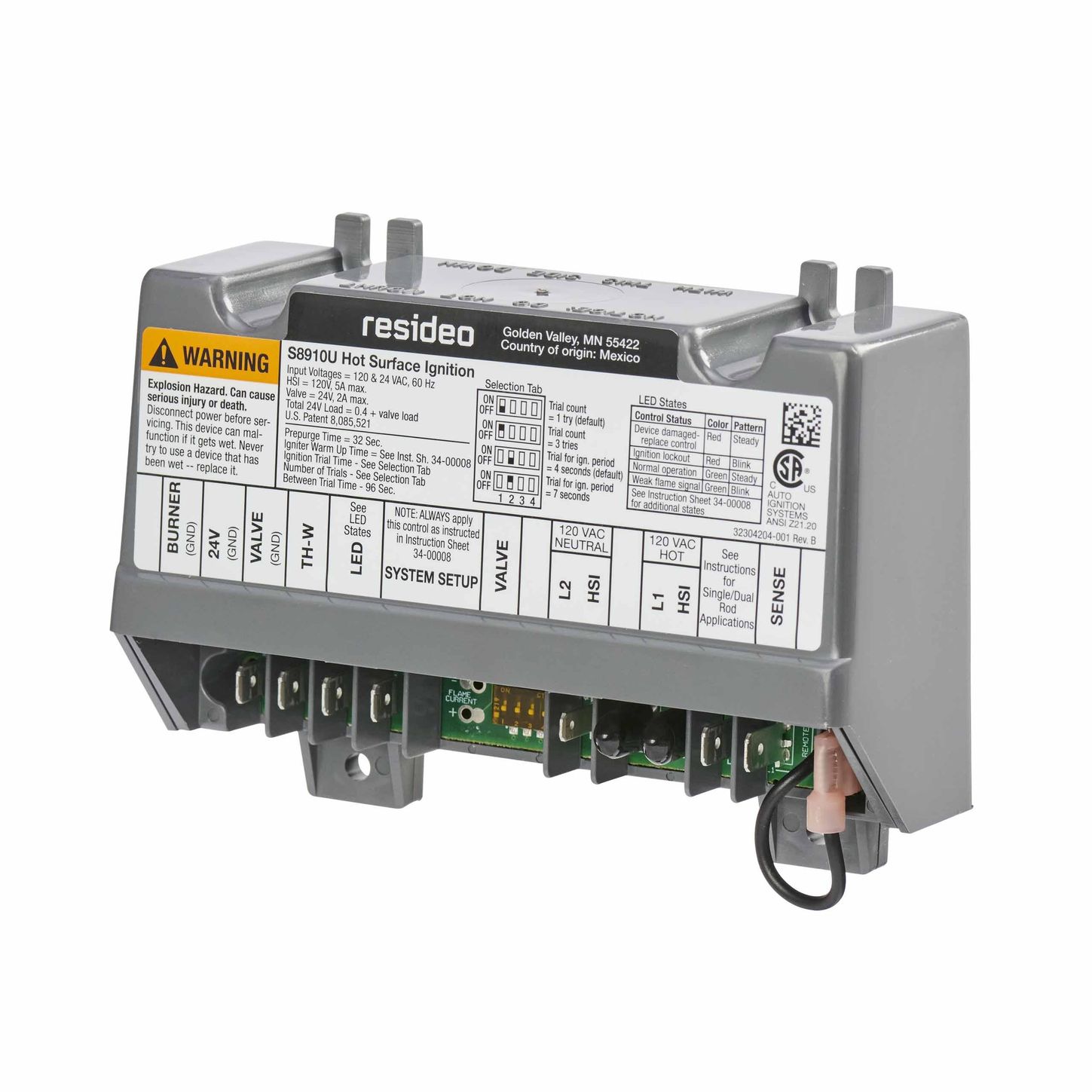

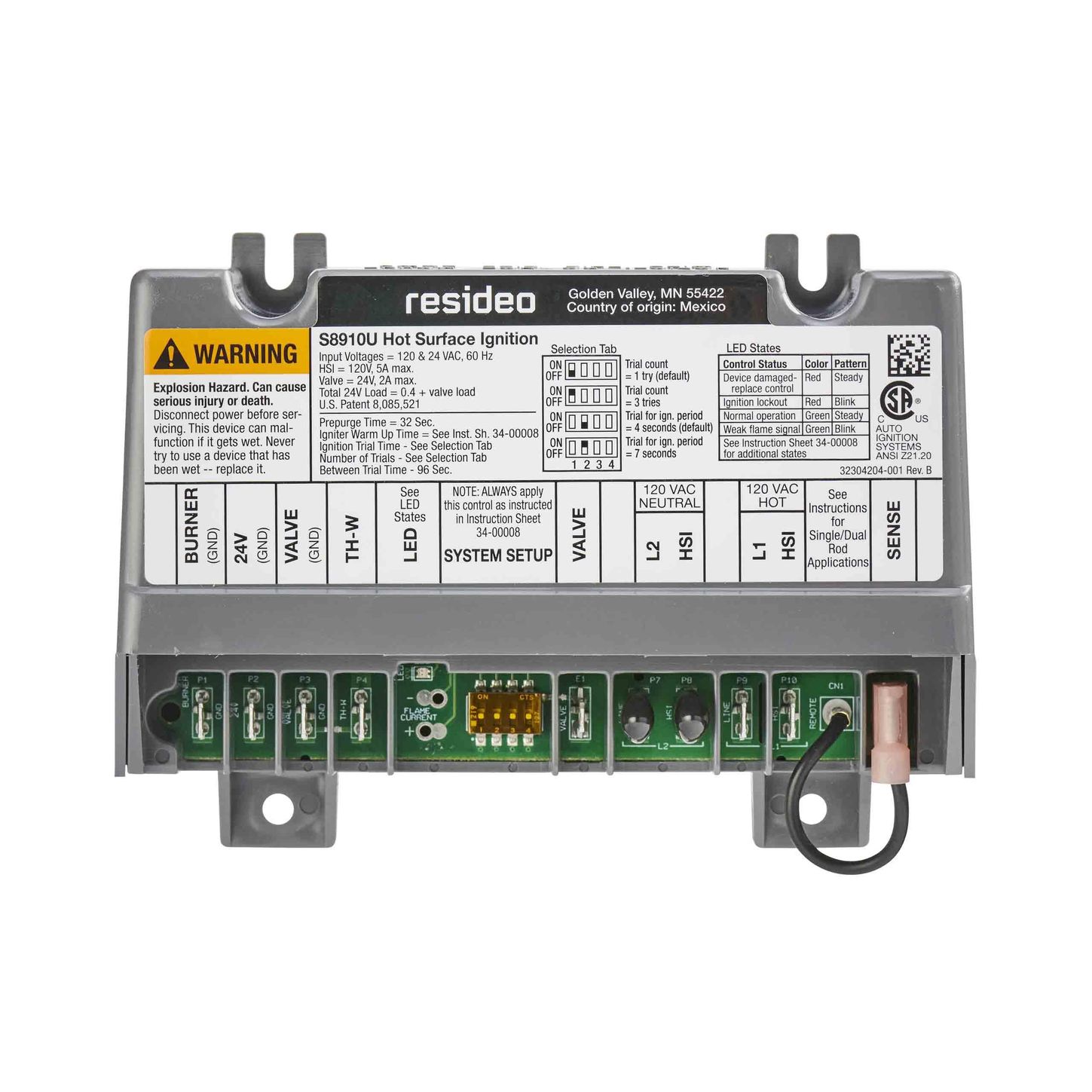

Resideo S8910U3000

Universal Hot Surface Ignition Module

Universal hot surface ignition module replaces multiple field installed hot surface ignition modules supplied by Honeywell, White-Rodgers, Robertshaw and Johnson. Uses a 120 VAC igniter. Includes cross reference, instructions, and accessories for easy replacement.

Features

• Replaces over 800 White-Rodgers, Robertshaw and Honeywell hot surface ignition models.
• For 120 Vac (up to 5.0A) surface igniter (Norton 201/271 or equivalent).
• S8910U 3000 Series has LED status indicator and microammeter ports for easy trouble shooting
• For local (single rod) or remote (dual rod) rectification type flame sensing.
• Contains easy-to-use cross reference and instructions plus the accessories required to replace the existing hot surface ignition module.
• Provides one or three ignition trials (four-second or seven-second trials) per call for heat.
• Field selectable number of ignition trials and trial time based on unit being replaced.
