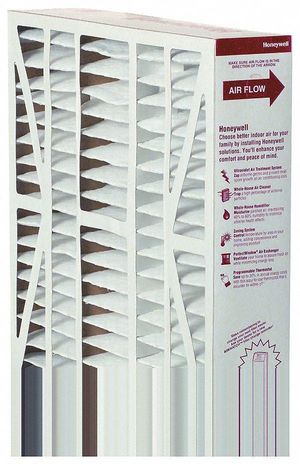

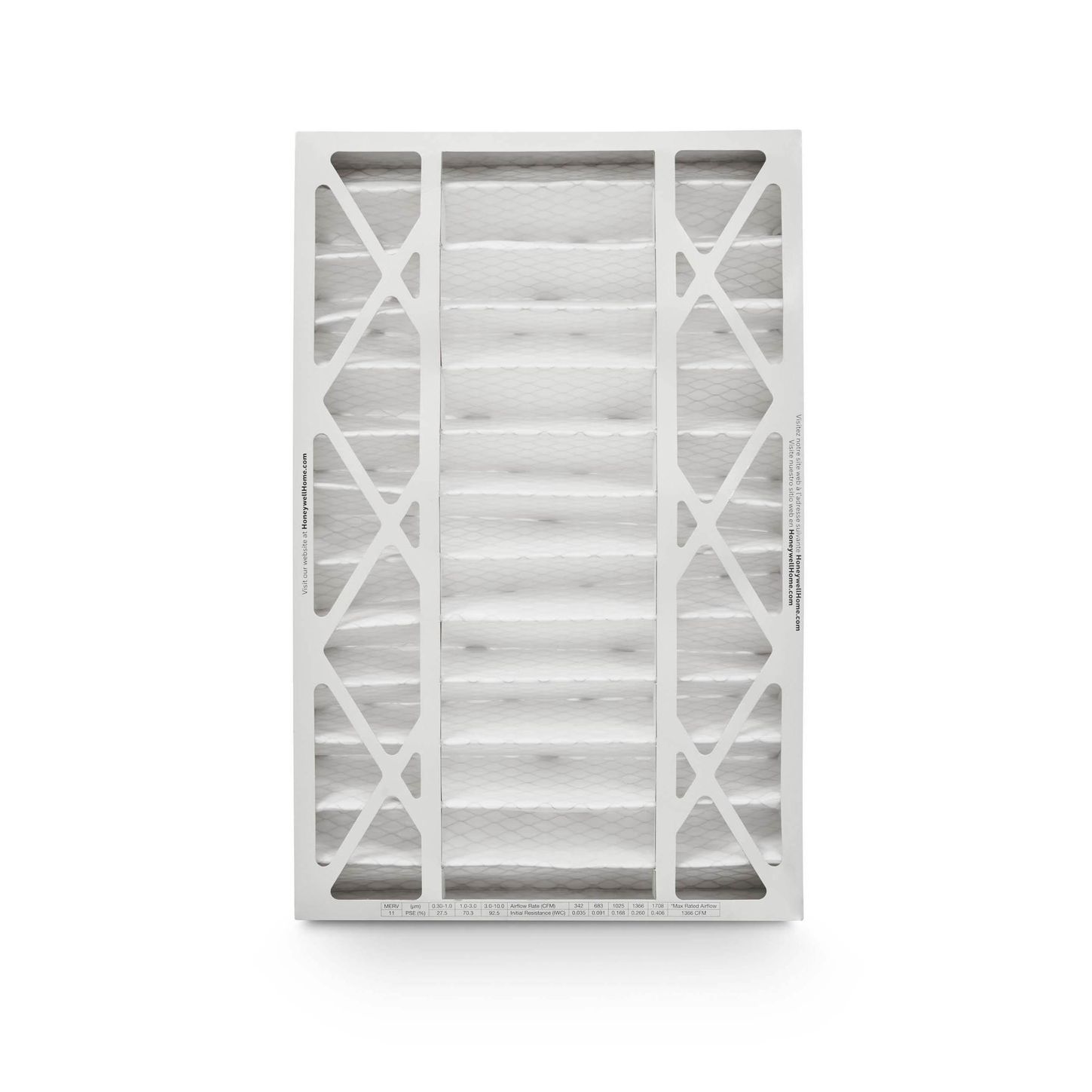

Resideo FC100A1029

16x25 Media Air Filter

New MERV 11 (at 492 FPM) performance with lower pressure drop at no additional cost.

Specifications

• Nominal filter size: 16” x 25” x 4”
• Actual filter size: 15-15/16” x 24-⅞” x 4-⅜”
• Application: Replacement Filter
• Efficiency Standard: Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2-1999
• Efficiency Standard: Efficiency ranges are defined for small particles, E1\=0.3 to 1.0 microns; medium particles, E2\=1.0 to 3.0 microns; and large particles, E3\=3.0 to 10.0 microns.
• Fractional Efficiency: E1\=25%, E2\=62%, E3\=85%
• Minimum Efficiency Reporting Value (Media Filters Only): MERV 11
• Static Pressure Drop (in. w.c.): 0.23 at 500 FPM

Features

• Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning Engineers Standard 52.2 1999.
• Efficiency ranges are defined for small particles, E1\=0.3 to 1.0 microns; medium particles, E2\=1.0 to 3.0 microns; and large particles, E3\=3.0 to 10.0 microns.
