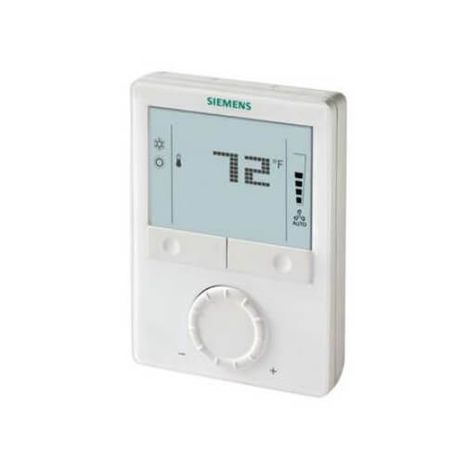

Siemens RDG110U
SKU: CS3079227MPN: RDG110UUPC/EAN: 7612914100306
Room thermostat, AC 24 V, for fan coil units and heat pump applications
$149.96
Unit5+ Units Available at Factory - Ships Same/Next Business Day
Product Details
Operating modes: Comfort, Energy Saving and Protection 2-position control outputs Automatic or manual fan speed 3 multifunctional inputs for keycard contact, external room / return air temperature (QAH11.1, QAA32), heat / cool changeover, operation mode changeover, window contact on/off, dewpoint monitor, electrical heater enabled, fault contact Automatic or manual heating / cooling changeover Adjustable commissioning and control parameters Minimum and maximum setpoint limitation Backlit display
Application selectable: 2-pipe system 2-pipe system with electrical heater 2-pipe system and radiator / floor heating 4-pipe system 2-stage heating or cooling system
Attributes
| Analog Inputs Number | 2.0000 |
| Digital Inputs Number | 1.0000 |
| Operating Voltage | 24 VAC |
| Power Consumption | 2 VA;1 W |
| Relay Outputs Number | 5.0000 |
Specifications
| SKU | CS3079227 |
|---|---|
| MPN | RDG110U |
| UPC/EAN | 7612914100306 |
You may also like

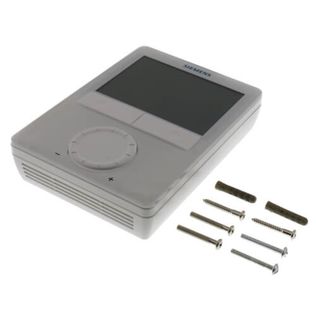

Siemens RDG400
