Dwyer VA1048
SKU: CS3078661MPN: VA1048Alternate Part #: 124090-13
VA1048 1.11 SCFH GLASS FLMTR
$332.16
UnitAvailable on backorder
Product Details

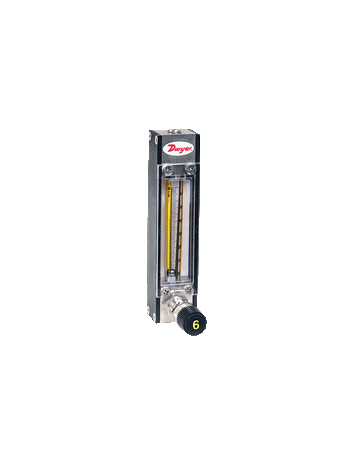

Variable area glass flowmeter, SS float, max. flow rate 1.1 SCFH (522 ml/min) air, 0.19 GPH (12.0 ml/min) water.
Attributes
| Accuracy | ±2% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute); VA1043, VA1243, VA1343, VA25425, VA25025: ±5% FS @ 70°F (21.1°C) and 14.7 psia (1 @ absolute). |
| Commodity Code | R4AA |
| Connection | Two ⅛” female NPT. |
| Leak Rate | 1 x 10-7 sccs of helium. |
| Mounting | Vertical. |
| Pressure Limit | 200 psig (13.8 bar); VAX5XX: 100 psig (6.7 bar). |
| Repeatability | ±0.25% FS. |
| Scale | Universal 65 mm or 150 mm with correlation charts. |
| Service | Compatible gases or liquids. |
| Turn Down Ratio | 10:1. |
| Valve | 6-turn needle (standard), optional 16-turn high precision valve. |
| Valve Orifice | Acetal on aluminum models and brass models, PCTFE on stainless steel models; PTFE on VAX5XX models. |
| Wetted Material | Flowtube: Borosilicate glass; Floats: Glass or SS (sapphire, Carboloy and tantalum are optional); Float stops: PTFE; End fittings: Anodized aluminum, 316 SS, brass or PTFE; Packings: Fluoroelastomer, none on VAX5XX models; O-rings: Buna-N on aluminum models and brass models, fluoroelastomer on SS models, PTFE on VAX5XX models. |
Specifications
| SKU | CS3078661 |
|---|---|
| MPN | VA1048 |
| Alternate Part # | 124090-13 |
