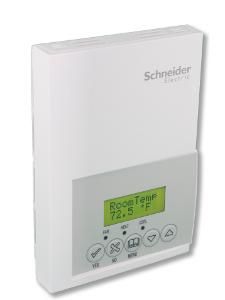

Schneider Electric SE7652B5045B

Name: Schneider Electric SE7652B5045B
Brand: Schneider Electric
SKU: CS3063881
Price: 336.82 USD
Availability: InStock

SKU: CS3063881MPN: SE7652B5045BAlternate Part #: SENA-SE7652B5045BUPC/EAN: 711426067026

Roof Top Controller: BACnet MS/TP, 2H/2C, Local scheduling

$336.82

Unit

10+ Units Available at Factory - Ships Same/Next Business Day

Quantity

remove

add

Documents

Roof Top Controller: BACnet MS/TP, 2H/2C, Local scheduling

Ambient Air Temperature For Operation	32-122 °F
Ambient Air Temperature For Operation 1	32-122 °F
Ambient Air Temperature For Operation 2	32-122 °F
Ambient Air Temperature For Storage	-22-122 °F
Awg Gauge	AWG 22…AWG 18
Awg Gauge 1	AWG 22…AWG 18
Calibration Certificate	1 pt
Communication Port Protocol	BACnet MS/TP
Communication Port Protocol 1	BACnet MS/TP
Communication Port Protocol 2	BACnet MS/TP
Communication Port Protocol 3	BACnet MS/TP
Device Application	low voltage rooftop# #staging equipment (RTU/HP)
Device Presentation	without cover
Device Short Name	SE7600B
Directives	89/336/EEC - electromagnetic compatibility
Electrical Insulation Class	class II
Input Type	2 x dry contact
Internal Resistance	>= 2 kOhm
Market Segment	residential
Product Name	SE7000 Series
Product Or Component Type	room controller
Product Specific Application	2-stage heating# #2-stage cooling
Range	EcoStruxure Building Expert
Rated Operational Power In Va	2 VA
Relative Humidity	0-95 % RH, non-condensing
Relative Humidity 1	0-95 % RH, non-condensing
Sensor Type	temperature: 10 kOhm T2 NTC thermistor
Sensor Type 1	temperature: 10 kOhm T2 NTC thermistor
Storage Relative Humidity	0-95 % RH, non-condensing
