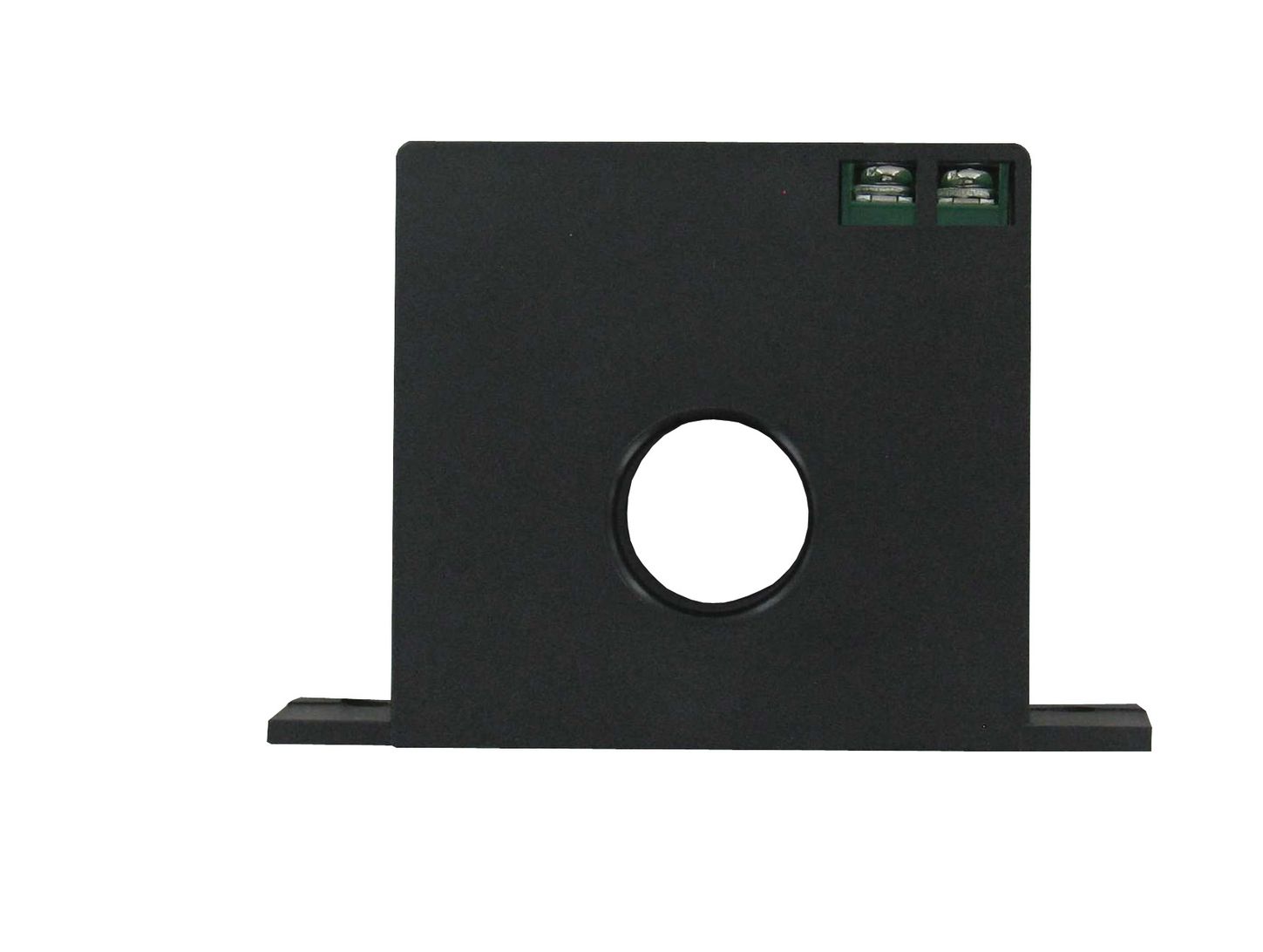

Dwyer CCS-111100
SKU: CS3057010MPN: CCS-111100Alternate Part #: 124801-01
CCS-111100 CUR SW,SOL,ADJ,N.O.
$30.85
Unit2 in stock
Product Details
Current switch, solid core, adjustable, normally open, red/green LED, min. set point 1.00.
Attributes
| Amperage Range | 0 to 200 A AC. |
| Commodity Code | R3CA |
| Compliance | CE, cULus. |
| Enclosure Rating | UL, 94 V-O flammability rated, ABS plastic housing. |
| Frequency | 40 to 400 Hz. |
| Humidity Limit | 0 to 95% (non-condensing). |
| Humidity Limits | 0 to 95% (non-condensing). |
| Isolation Voltage | 2000 V. |
| Maximum Switch Rating | For dry contact models: 0.3 A @ 135 VAC/DC; For non-dry contact models: 1 A @ 240 VAC. |
| Power Requirement | None, self-powered. |
Specifications
| SKU | CS3057010 |
|---|---|
| MPN | CCS-111100 |
| Alternate Part # | 124801-01 |
