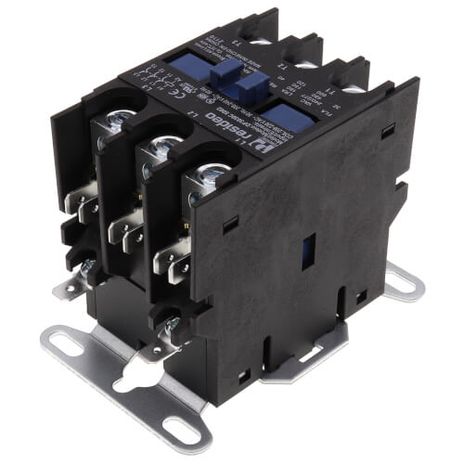

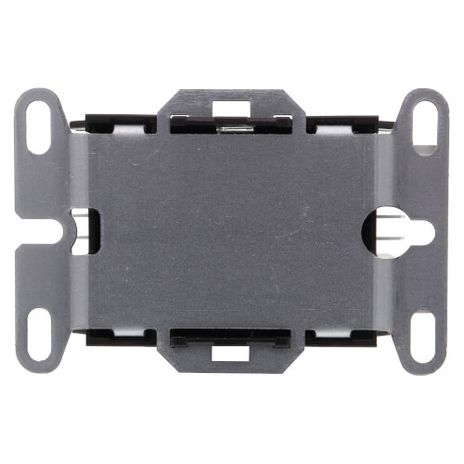

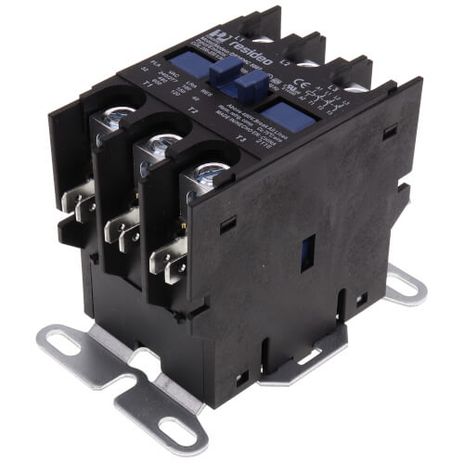

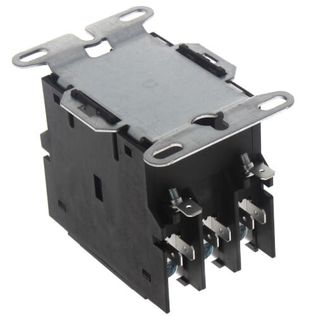

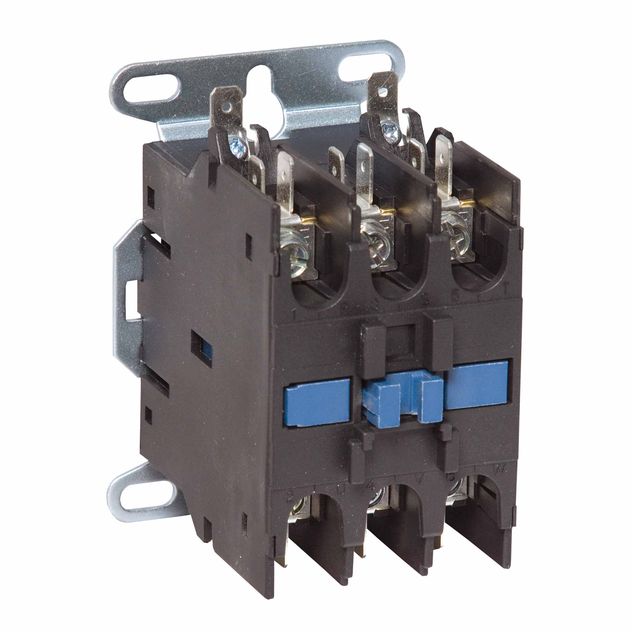

Resideo DP3030C5002

3 pole 208/240 Vac PowerPro Definite Purpose Contactor

Overview:

These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.

Features:

• Meet the most demanding ARI requirement, ARI-780 Standard.
• Class H high temperature insulated coils are standard on 3 pole contactors.
• Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
• Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
• Full array of replacement coils, contact sets and accessories available.
• Coil Ratings Voltage: 208 Vac/240 Vac
• Poles: 3
• Electrical Connections (main): #10-32 combination head screws
• Contact Connections (coil): ¼ in. quick-connects and #6 screws
• Dimensions (in.): 3.1” high x 3.62” wide x 2.4” deep
