Belimo G680C+AFX24-MFT-X1

SKU: CS3047913MPN: G680C+AFX24-MFT-X1

Globe Valve (GV), 3”, 2-way, ANSI Class 125, Cv 90 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

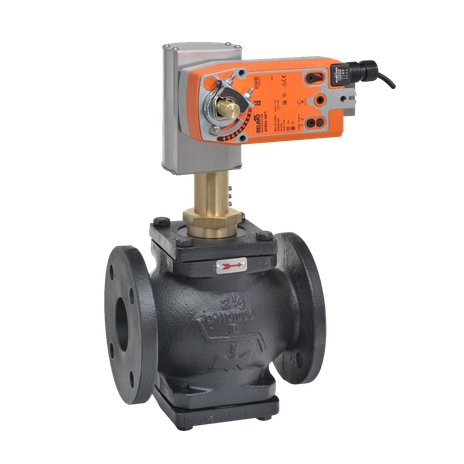

Belimo G665C+AFBUP-S-X1, G665C+AFBUP-X1, G665C+AFX24-MFT-S-X1, G665C+AFX24-MFT-X1, G665C+AFX24-MFT95-X1, G665C-250+AFBUP-X1, G665C-250+AFX24-MFT-S-X1, G665C-250+AFX24-MFT-X1, G665CS+AFBUP-X1, G665CS+AFX24-MFT-S-X1, G665CS+AFX24-MFT-X1, G665CS+AFX24-MFT95-X1, G665CS-250+AFBUP-S-X1, G665CS-250+AFBUP-X1, G665CS-250+AFX24-MFT-S-X1
$2,794.13
Unit
Available on backorder
remove
add

Documents

Product Details

Globe Valve (GV), 3”, 2-way, ANSI Class 125, Cv 90 |Configurable Valve Actuator, Spring return, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control MFT/programmable
Valve Size 3” [80]
Cv 90.0
Flow Pattern 2-way
Fail-Safe Spring Return
Valve Trim Bronze
Nominal Voltage AC/DC 24 V
Close-Off Pressure ∆Ps 140 psi
Transformer Sizing 10 VA (class 2 power source)
Enclosure UL Enclosure Type 2
Pressure Independent NO
Power Supply 24 VAC, ±20%, 50/60 Hz, 24 VDC, -10% / +20%
Power Consumption In Operation 7.5 W
Power Consumption In Rest Position 3 W
Electrical Connection 18 GA appliance cable, 3ft [1m] 10ft [3m] and 16ft [5m], with ½” conduit connector, degree of protection NEMA 2 / IP54
Overload Protection electronic throughout 0…95° rotation
Operating Range 2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, PWM, on/off, floating point)
Operating Range Y Variable Start point 0.5…30 V End point 2.5…32 V
Position Feedback 2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation 95°, adjustable with mechanical end stop, 35…95°
Direction Of Motion Motor selectable with switch 0/1
Position Indication Mechanical
Running Time (Motor) default 150 s, variable 70…220 s
Running Time Fail-Safe <20 s
Ambient Humidity max. 95% r.H., non-condensing
Ambient Temperature -22…122°F [-30…50°C]
Storage Temperature -40…176°F [-40…80°C]
Fluid chilled or hot water, up to 60% glycol, steam
Controllable Flow Range stem up - open A – AB
Pipe Connection 125 lb flanged
Ansi Class 125
Number Of Bolt Holes 4.0
Maximum Inlet Pressure (Steam) 35 psi [241 kPa]
Max Differential Pressure (Steam) 15 psi [103 kPa]
Rangeability Sv 91:1
Fluid Temp Range (Water) 32…338°F [0…138°C]
Degree Of Protection Iec/En IP54
Degree Of Protection Nema/Ul NEMA 2
Connection cable
Cv Range [Gpm] 48…197
Pipe Connection Type flange
Kvs Range [M³/H] 41…170 m³/h
Flow Characteristic equal percentage
Servicing repack/rebuild kits available
Valve Body Cast iron - ASTM A126 Class B
Valve Plug brass
Stem stainless steel
Seat Stainless steel AISI 316
Stem Seal NLP EPDM (no lip packing)
Housing Material Galvanized steel and plastic housing
Nominal Voltage Dc 24 V
Nominal Voltage Ac 24 V
Noise Level, Motor 40 dB(A)
Body Pressure Rating ANSI Class 125, up to 175 psi below 150°F
Quality Standard ISO 9001
Fluid Temp Range (Steam) 32…280°F [0…138°C]
Noise Level, Fail-Safe 62 dB(A)
Agency Listing cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU Listed to UL 2043 - suitable for use in air plenums per Section 300.22(C) of the NEC and Section 602 of the IMC
Override Control MIN (minimum position) = 0% MID (intermediate position) = 50% MAX (maximum position) = 100%
Fail-Safe Function Spring return
Control Type Web MFT/Programmable
Fail-Safe YES

Specifications

SKUCS3047913
MPNG680C+AFX24-MFT-X1
