Square D 8501KUR12V20
SKU: CS3042380MPN: 8501KUR12V20UPC/EAN: 785901310334
Plug in relay, Type KU, blade, 0.5 HP at 240 VAC, 10A resistive at 120 VAC, 8 blade, DPDT, 2 NO, 2 NC, 120 VAC coil
$34.86
UnitAvailable on backorder
Product Details
General Purpose Plug-In Relay Blade
- Switch Function: DPDT* Control Circuit Voltage: 120V AC* 10A at 250V AC* Rated Power in HP: 1 HP 277V, 0.33 HP 120V* Clear Cover* No LED
Attributes
| Ambient Air Temperature For Operation | -40-131 °F |
| Ambient Air Temperature For Operation 1 | -40-131 °F |
| Contacts Material | silver alloy (AgNi) |
| Mounting Support | socket |
| Product Certifications | UL listed# #UL recognized# #CSA# #CE |
| Product Compatibility | 8501NR82 |
| Product Or Component Type | relay |
| Range Of Product | 8501K |
| Relay Type | general purpose |
| Shape Of Pin | spade |
| Switch Function | DPDT |
Specifications
| SKU | CS3042380 |
|---|---|
| MPN | 8501KUR12V20 |
| UPC/EAN | 785901310334 |
You may also like

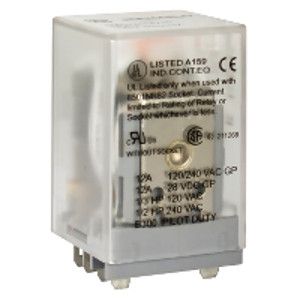

Square D 8501KUR12P14V20
Contact us for pricing and availability
Square D 8501KUDR12V53
$34.86Unit
Square D 8501KUR13V14
$37.68Unit

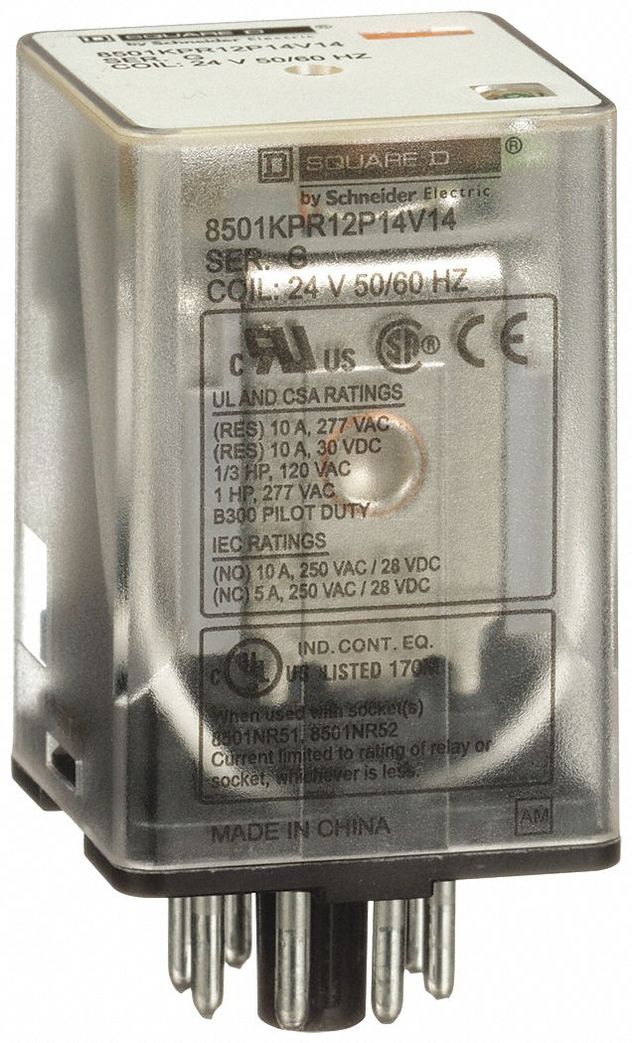

Square D 8501KPR12P14V14
$65.01Unit

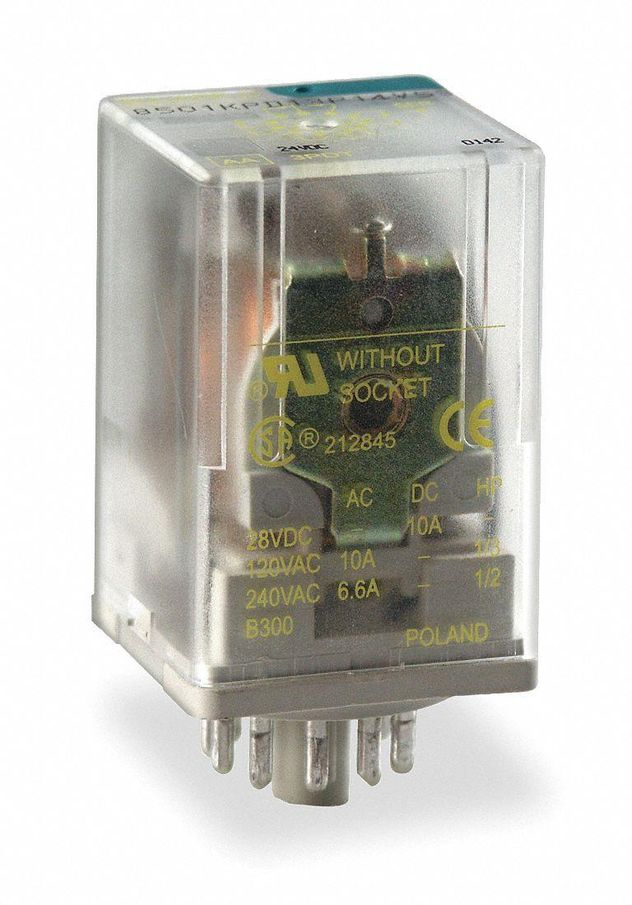

Square D 8501KPDR12V51
$56.53Unit
Square D 8501KFR12V14
$37.68Unit

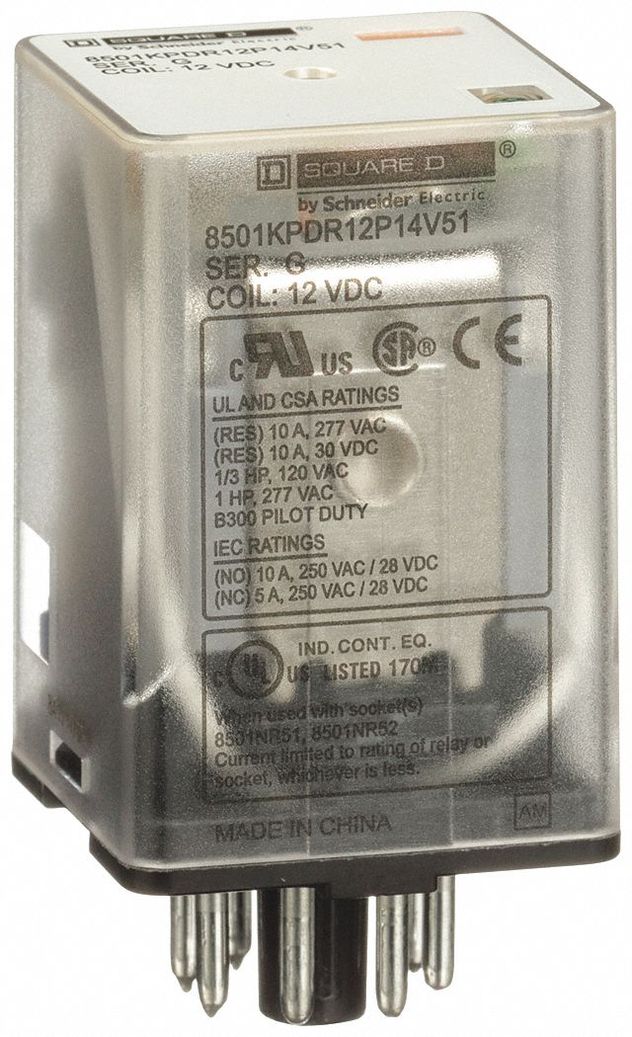

Square D 8501KPDR12P14V51
Contact us for pricing and availability
Square D 8501RS42V24
Contact us for pricing and availability

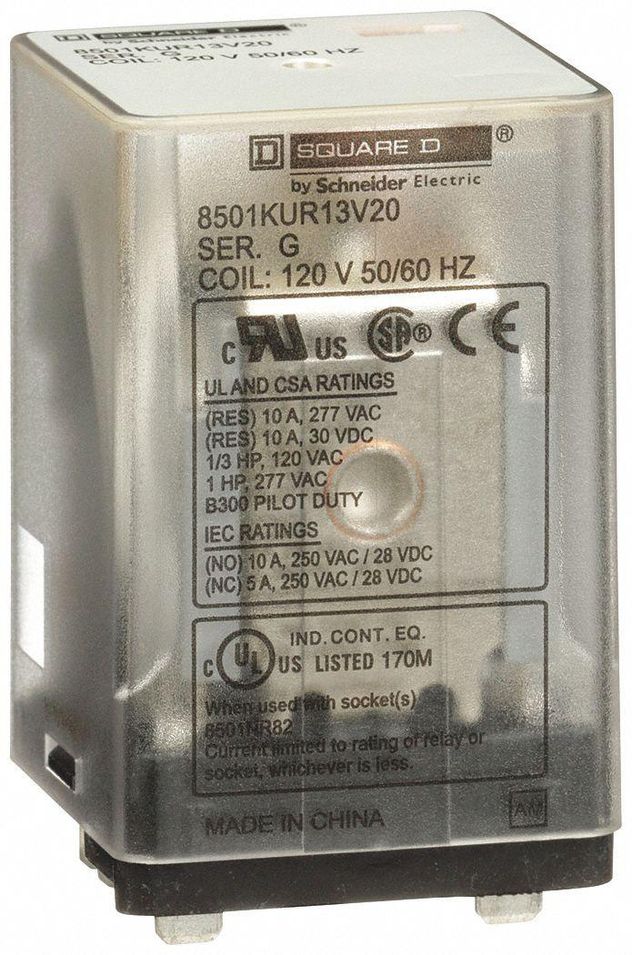

Square D 8501KUR13V20
$37.68Unit
Square D 8501RS42P14V14
$63.59Unit

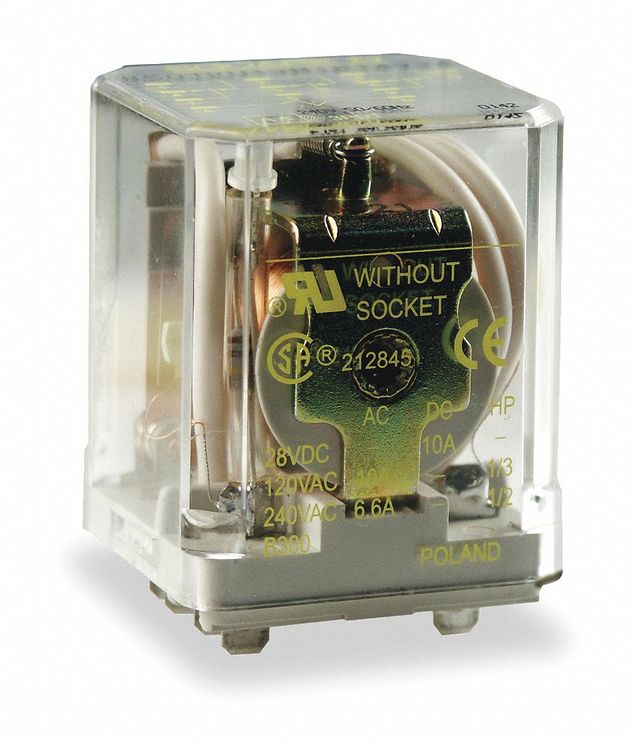

Square D 8501KUR13P14V20
$47.11Unit

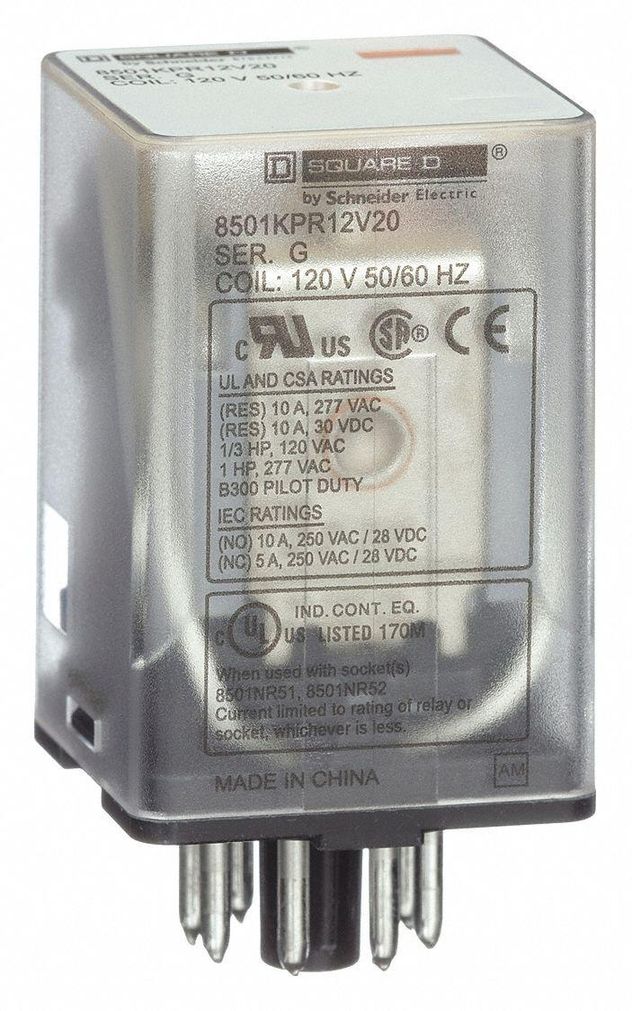

Square D 8501KPR12V20
