Dwyer CCT60-200
SKU: CS3041674MPN: CCT60-200Alternate Part #: 124806-12

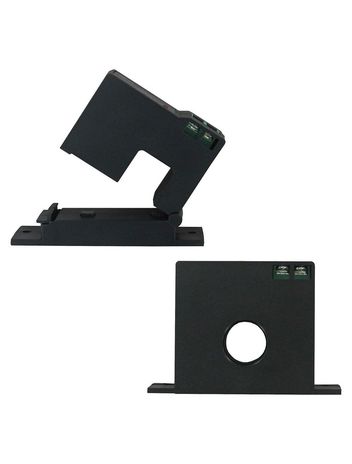

CCT60-200 SOLID CURRENT SENSOR
$66.49
UnitAvailable on backorder
Product Details
Current transformer, 10/20/50 A input, 4-20 RMS output, solid core.
Attributes
| Accuracy | 1%. |
| Amperage Range | Up to 200 A (depending on model). |
| Approvals | CE, cUL, UL. |
| Commodity Code | R3CC |
| Enclosure Rating | UL, 94 V-O flammability rated, ABS plastic housing. |
| Frequency | 10 to 400 Hz. |
| Humidity Limit | 0 to 95% (non-condensing). |
| Humidity Limits | 0 to 95% (non-condensing). |
| Isolation Voltage | 2000 V. |
| Output | 4 to 20 mA, true RMS. |
| Power Requirement | 24 VDC nominal. |
| Response Time | 250 ms to 90%. |
Specifications
| SKU | CS3041674 |
|---|---|
| MPN | CCT60-200 |
| Alternate Part # | 124806-12 |
