Square D XALK178H7

Name: Square D XALK178H7
Brand: Square D
SKU: CS3039801
Price: 194.25 USD
Availability: InStock

SKU: CS3039801MPN: XALK178H7

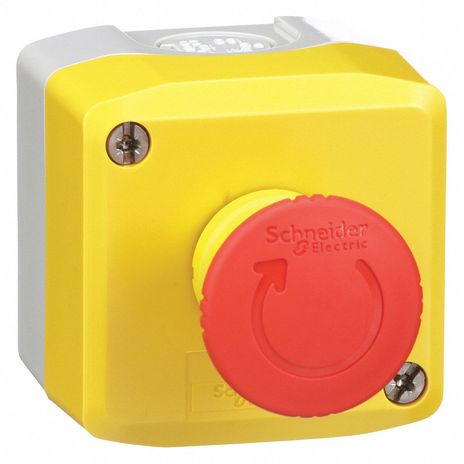

Control station, Harmony, plastic, yellow, 1 red mushroom head push button 40mm, emergency stop turn to release 1 NC, unmarked, UL CSA certified

$194.25

Unit

1 in stock

Quantity

remove

add

Product Details

Harmony XALK Complete Control Station

Color of Cover: Yellow RAL 1021* Color of Base: Light Grey RAL 7035* Operator Profile: 1 Mushroom Head Pushbutton* Operators Description: Red Unmarked 1 NC* * Reset: 40mm Turn to Release* Degree of protection: NEMA 13/4X

Ambient Air Temperature For Operation	-40-70 °C
Ambient Air Temperature For Operation 1	-40-70 °C
Ambient Air Temperature For Storage	-40-70 °C
Contact Operation	slow-break
Contacts Material	silver alloy (Ag/Ni)
Control Station Application	emergency stop function# #emergency switching off function
Device Short Name	XALK
Material	polycarbonate
Mechanical Durability	300000 cycles
Operator Profile	1 mushroom head push-button
Operator Profile 1	1 mushroom head push-button
Operators Description	red unmarked 1 NC
Product Certifications	CSA# #UL listed
Product Destination	for XB5 Ø 22 mm control and signalling units
Product Or Component Type	complete control station
Protective Treatment	TH
Range Of Product	Harmony XALK
Reset	turn to release
Standards	EN/IEC 60947-5-1# #EN/IEC 60947-1# #UL 508# #EN/ISO 13850# #JIS C 4520# #EN/IEC 60947-5-5# #EN/IEC 60947-5-4# #EN/IEC 60204-1# #CSA C22.2 No 14# #IEC 60364-5-53
