Eaton E50AS1S20

Name: Eaton E50AS1S20
Brand: Eaton
SKU: CS3039608
Price: 768.88 USD
Availability: OutOfStock

SKU: CS3039608MPN: E50AS1S20UPC/EAN: 782113628585

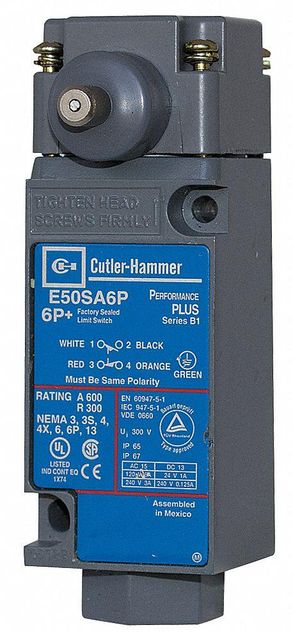

Eaton E50 NEMA heavy duty plug-in limit switch

Eaton E50AH1RFY1, E50AL16P20, E50AL1P5, E50ALH1, E50ALH16P, E50ALL1, E50ALL16P, E50ALM1, E50ALM16P, E50ALM16P20, E50ALR1, E50ALR16P, E50ALR16P12, E50ALR16P20, E50ALR16PC

Product Details

Eaton E50 NEMA heavy duty plug-in limit switch,Within 0.003,20 Ft. ( 6.1m ) Cable,10A at 240Vac,1A at 250Vdc,SOOW-A,1NO-1NC,240Foot,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A,1A,14° to 201°F (-10° to 94°C),Side Pushbutton

Attributes

Accuracy	Within 0.003
Cable Type	SOOW-A
Connection	20 ft (6.1 m) cable
Contact Configuration	1 NO-1 NC
Contact Rating	10A at 240Vac, 1A at 250Vdc
Enclosure Material	Die cast zinc
Environmental Rating	NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current	10 A
Maximum Dc Current	1 A
Operating Temperature Max	201 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	14 FAH
Operating Temperature Min Uom	FAH
Switch Type	Side pushbutton
