Belimo CMB24-3

Name: Belimo CMB24-3
Brand: Belimo
SKU: CS3038237
Price: 128.27 USD
Availability: InStock

SKU: CS3038237MPN: CMB24-3

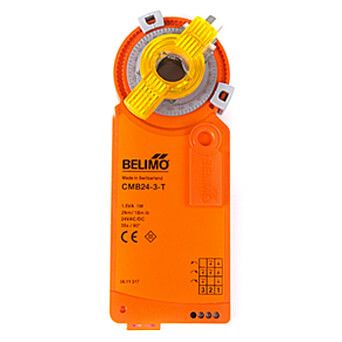

Damper Actuator, 18 in-lb [2 Nm], Non fail-safe, AC/DC 24 V, On/Off, Floating point

$128.27

Unit

1 in stock

Quantity

remove

add

Documents

Product Details

Features:

Brushless DC Motor for Added Accuracy and Controllability
Cut Labor Costs with Simple Direct Coupling
Self-Centers on ½” shafts with Universal Clamp
Check Damper Position with Clear Position Indicator
Don’t Worry about Actuator Burn-Out; Belimo is Overload Proof throughout Rotation
Enjoy Added Flexibility with Easy Mechanical Stops to Adjust Angle of Rotation
Easy override with use of magnet located on position indicator
Mounts Directly on Clamp, Includes Conduit Connector
Standard 3ft Plenum Rated Cable Provided on Basic Models

The CMB24-3 damper actuator is used for operating air control dampers in ventilation and air conditioning systems for building services installations. For air control dampers up to approximately 4.5 sq ft. Running time of 35 seconds, constant independent of load. Manual operation is possible with a magnet (the gearing latch remains disengaged as long as the magnet is in place).

Attributes

Control	On/Off Floating point
Fail-Safe	Non-Spring Return
Torque	18 in-lb
Nominal Voltage	AC/DC 24 V
Transformer Sizing	1.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±20%
Power Consumption In Operation	1 W
Power Consumption In Rest Position	0.2 W
Electrical Connection	Plenum cable 18 GA, 3 ft [1 m], degree of protection NEMA 2 / IP54
Overload Protection	electronic throughout full rotation
Angle Of Rotation	0…287.5°, Without limitation: endless With one end stop clip Z-ESCM: 315°
Direction Of Motion Motor	by electrical installation
Position Indication	Mechanically, pluggable (with integrated magnet for gear disengagement)
Running Time (Motor)	35 s, constant, independent of load
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Housing Material	UL94-5VA
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Torque Motor	18 in-lb [2 Nm]
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Shaft Diameter	¼…½” round, centers on ⅜”
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
