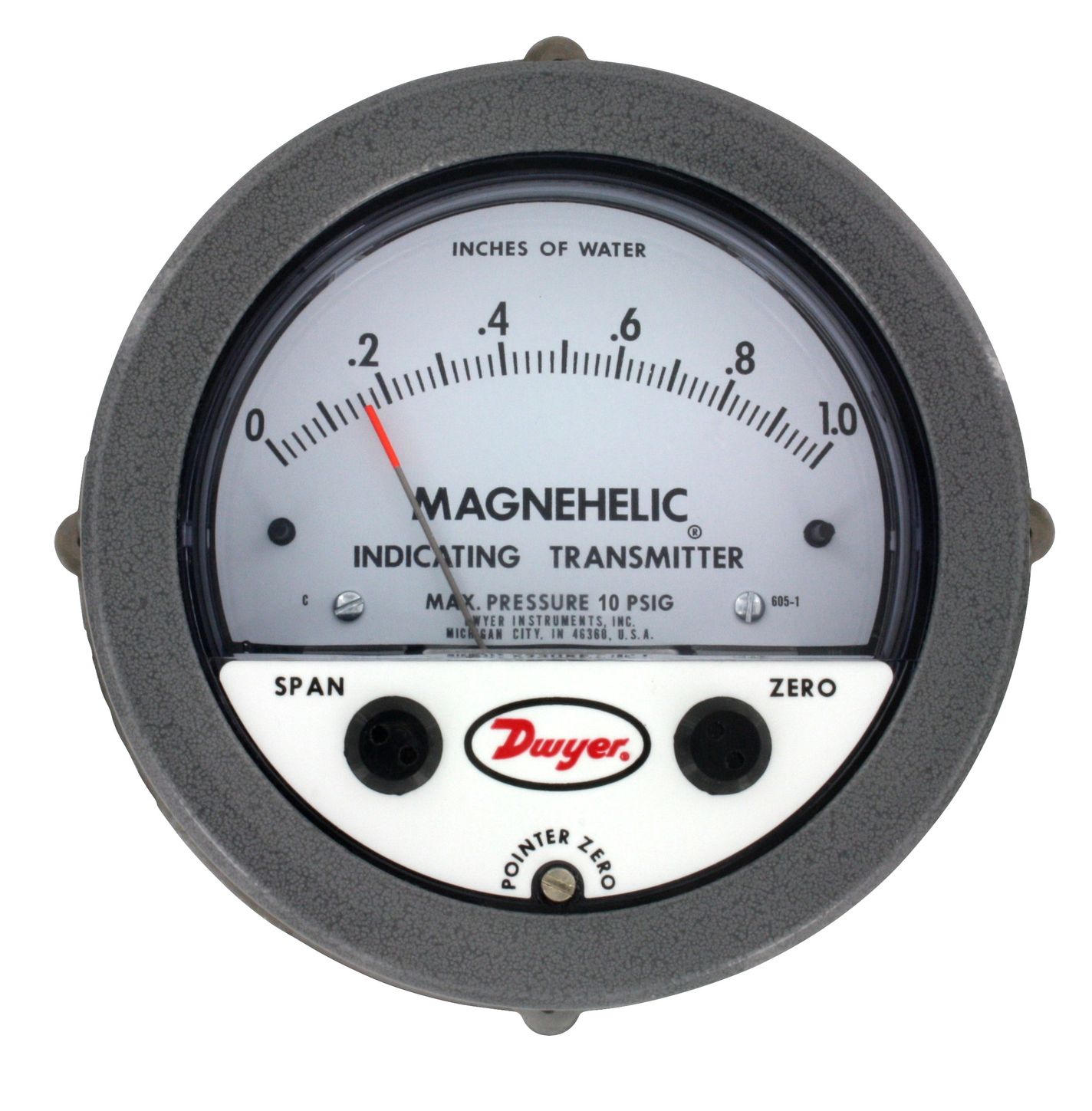

Dwyer 605-30
SKU: CS3027206MPN: 605-30Alternate Part #: 102296-00
605-30 MAGNEHELIC IND XMTR
$500.90
UnitAvailable on backorder
Product Details
Differential pressure indicating transmitter, range 0-30” w.c., max. pressure 11 psi (75.8 kPa), ±0.5% electrical accuracy, ±2% mechanical accuracy.
Attributes
| Accuracy | See Ordering page (includes linearity, hysteresis, and repeatability). |
| Agency Approval | CE. |
| Commodity Code | 1001 |
| Compensated Temperature Range | 32 to 120°F (0 to 48.9°C). |
| Current Consumption | DC: 38 mA maximum. |
| Electrical Connection | Screw terminal block. |
| Loop Resistance | DC: 0 to 1250 Ω maximum. |
| Mounting Orientation | Diaphragm in vertical position. Consult factory for other position orientations. |
| Output Signal | 4 to 20 mA. |
| Power Requirement | 10 to 35 VDC (2-wire). |
| Pressure Limit | See Ordering page. |
| Process Connection | ⅛” female NPT. |
| Service | Air and non-combustible, compatible gases. |
| Size | 4” (101.6 mm) dial face, 5” (127 mm) OD x 2-11/16” (68.3 mm). |
| Stability | ±1% FS/yr. |
| Thermal Effect | ±0.025% FS/°F (0.045% FS/°C). |
| Wetted Material | Consult factory. |
| Zero And Span Adjustment | Protected potentiometers. |
Specifications
| SKU | CS3027206 |
|---|---|
| MPN | 605-30 |
| Alternate Part # | 102296-00 |
