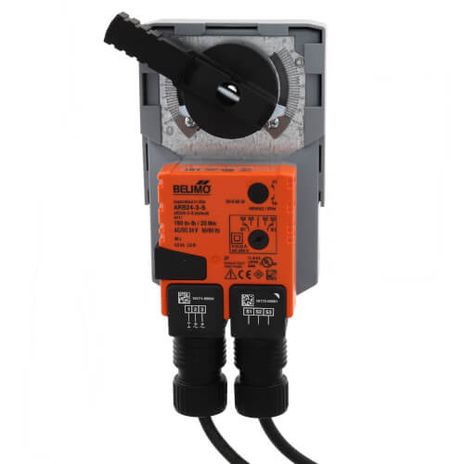

Belimo ARB24-3-S

Name: Belimo ARB24-3-S
Brand: Belimo
SKU: CS3013855
Price: 379.60 USD
Availability: OutOfStock

SKU: CS3013855MPN: ARB24-3-S

Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDT

$379.60

Unit

Available on backorder

Quantity

remove

add

Documents

Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point, 1 x SPDT

Control	On/Off Floating point
Auxillary Switch	1 x SPDT
Fail-Safe	Non-Spring Return
Nominal Voltage	AC/DC 24 V
Transformer Sizing	5.5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	0.5 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector
Overload Protection	electronic thoughout 0…90° rotation
Input Impedance	600 Ω
Angle Of Rotation	90°
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, pluggable
Running Time (Motor)	90 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Servicing	maintenance-free
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	45 dB(A)
Quality Standard	ISO 9001
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Auxiliary Switch	1 x SPDT, 3 A resistive (0.5 A inductive) @ AC 250 V, adjustable 0…100%
Fail-Safe Function	Non fail-safe
Control Type Web	Floating/3-point
Fail-Safe	NO
