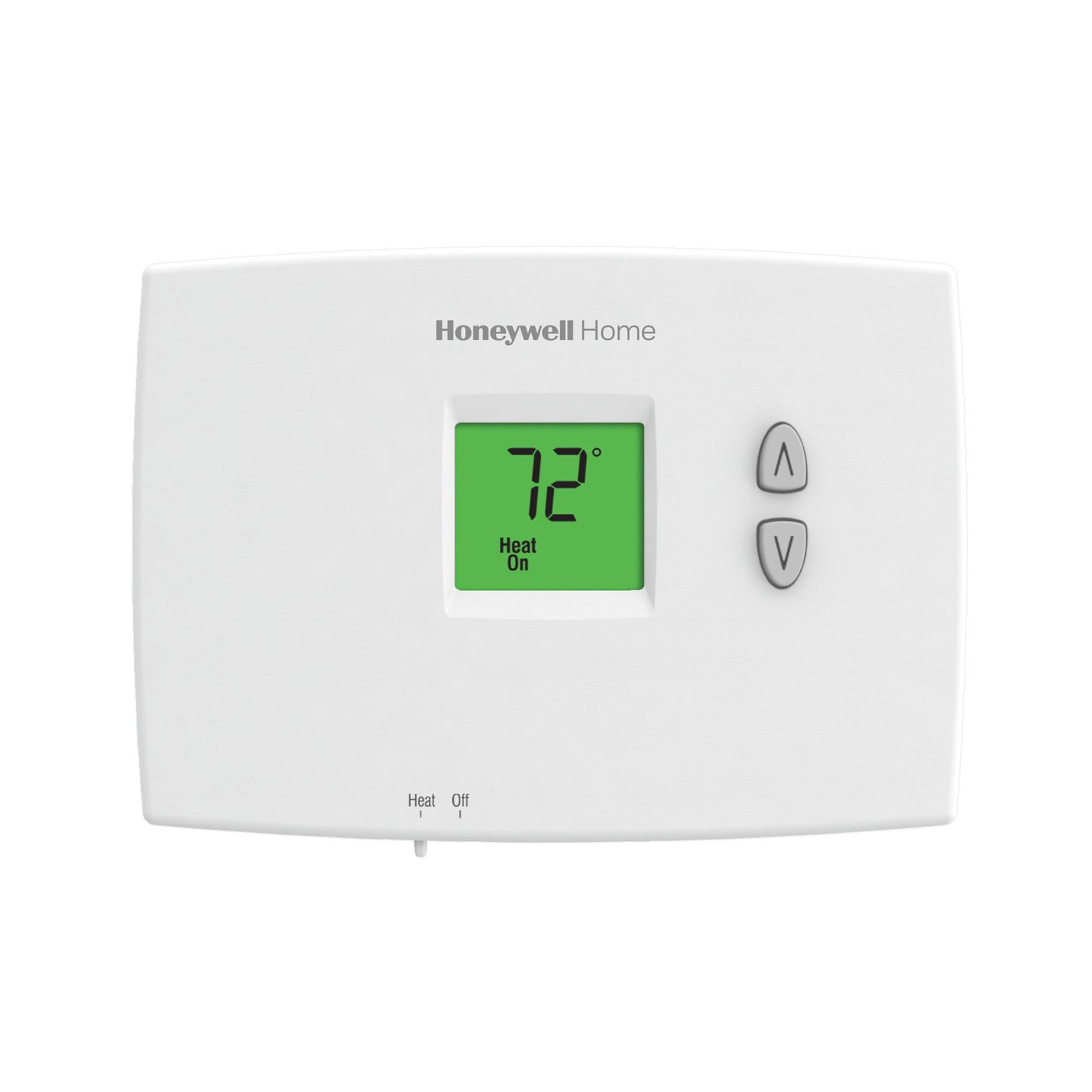

Resideo TH1100DH1004

PRO 1000 Horizontal Non-Programmable Thermostats

Overview:

The PRO non-programmable family of thermostats provides basic and simple operation with specific models for conventional and heat pump systems.

Application:

• Heat Only

Features:

• Dimensions (Height x Width x Depth): 3 7/16” x 4 10/16” x 1 3/16” (87mm x 119mm x 30mm)
• Mounting: Horizontal
• Electrical Ratings: 20 to 30 Vac or 750 mV
• Frequency: 50 Hz, 60 Hz
• Stages: 1 Heat
• Color: Premier White
• Setting Temperature Range: Selectable 40°F to 90°F or 35°F to 90°F (4.5°C to 32°C or 1.5°C to 32°C) (Heat)
• Switch Positions (System): HEAT-OFF
• Terminal Designations: R, C, W
• Power Method: Dual Powered: Battery or Hardwire
• Display Size: 1.32 sq in.
• Changeover: Manual
• Operating Humidity Range: 5 to 90% RH, non-condensing
• Cycles per Hour: Heating 2 - 6 CPH
• Heat Current: 0.02 A to 1.0 A (running).
