Belimo B2050VS-15+LMX24-MFT-X1

Name: Belimo B2050VS-15+LMX24-MFT-X1
Brand: Belimo
SKU: CS3000201
Price: 752.27 USD
Availability: OutOfStock

SKU: CS3000201MPN: B2050VS-15+LMX24-MFT-X1

Ball Valve (VS), ½”, 2-way, Cv 15 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

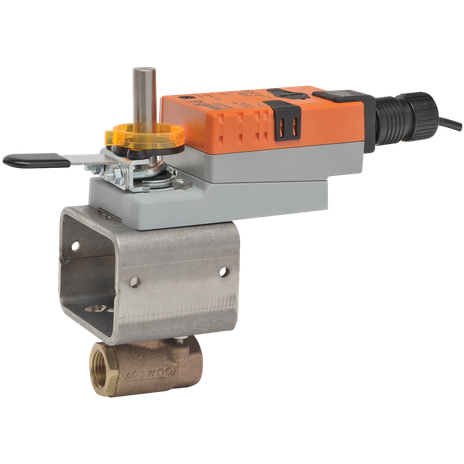

Belimo B2050VS-01+LMB24-3-X1, B2050VS-01+LMX24-3-X1, B2050VS-01+LMX24-MFT-X1, B2050VS-02+LMB24-3-X1, B2050VS-02+LMX24-3-X1, B2050VS-02+LMX24-MFT-X1, B2050VS-04+LMB24-3-X1, B2050VS-04+LMX24-3-X1, B2050VS-04+LMX24-MFT-X1, B2050VS-15+LMB24-3-X1, B2050VS-15+LMX24-3-X1, B2050VS-15+LMX24-MFT-X1, B2050VSS-15+LMB24-3-X1, B2050VSS-15+LMX24-3-X1, B2050VSS-15+LMX24-MFT-X1

$752.27

Unit

Available on backorder

Quantity

remove

add

Product Details

Ball Valve (VS), ½”, 2-way, Cv 15 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, 2...10 V, MFT/programmable

Attributes

Control	MFT/programmable
Valve Size	0.5” [15]
Cv	15.0
Flow Pattern	2-way
Fail-Safe	Non-Spring Return
Valve Trim	Stainless steel
Nominal Voltage	AC/DC 24 V
Close-Off Pressure ∆Ps	100 psi
Transformer Sizing	5 VA (class 2 power source)
Enclosure	UL Enclosure Type 2
Pressure Independent	NO
Power Supply	24 VAC, ±20%, 50/60 Hz, 24 VDC, ±10%
Power Consumption In Operation	2.5 W
Power Consumption In Rest Position	1.2 W
Electrical Connection	18 GA plenum cable, 3 ft [1 m], with ½” conduit connector (10 ft [3 m] and 15 ft [5 m] available)
Overload Protection	electronic throughout 0…95° rotation
Operating Range	2…10 V (default), 4…20 mA w/ ZG-R01 (500 Ω, ¼ W resistor), variable (VDC, on/off, floating point)
Operating Range Y Variable	Start point 0.5…30 V End point 2.5…32 V
Position Feedback	2…10 V, Max. 0.5 mA, VDC variable
Angle Of Rotation	Max. 95°, adjustable with mechanical stop
Direction Of Motion Motor	selectable with switch 0/1
Position Indication	Mechanically, 30…65 mm stroke
Running Time (Motor)	default 150 s, variable 30…150 s
Ambient Humidity	max. 95% r.H., non-condensing
Ambient Temperature	-22…122°F [-30…50°C]
Storage Temperature	-40…176°F [-40…80°C]
Fluid	chilled or hot water, up to 60% glycol, steam
Controllable Flow Range	90° rotation
Pipe Connection	NPT female ends
Maximum Inlet Pressure (Steam)	35 psi [241 kPa]
Max Differential Pressure (Steam)	35 psi
Maximum Velocity	15 FPS
Fluid Temp Range (Water)	-22…280°F [-30…138°C]
Degree Of Protection Iec/En	IP54
Degree Of Protection Nema/Ul	NEMA 2
Connection	cable
Cv Range [Gpm]	7.6…16
Pipe Connection Type	internal thread
Kvs Range [M³/H]	6.6…14 m³/h
Flow Characteristic	modified equal percentage
Servicing	maintenance-free
Valve Body	Bronze B584-C84400
Stem	316 stainless steel
Seat	RPTFE
Stem Seal	RPTFE
Nominal Voltage Dc	24 V
Nominal Voltage Ac	24 V
Noise Level, Motor	35 dB(A)
Body Pressure Rating	600 psig WOG
Quality Standard	ISO 9001
Retainer	B16 Brass
Lock Nut	stainless steel
Housing Seal	PTFE
Ball	316 stainless steel
Agency Listing	cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2014/30/EU and 2014/35/EU; Listed to UL 2043 - suitable for use in air plenums per Section 300.22© of the NEC and Section 602.2 of the IMC
Fail-Safe Function	Non fail-safe
Control Type Web	MFT/Programmable
Fail-Safe	NO
