Siemens 599-05993
SKU: CS29927MPN: 599-05993UPC/EAN: 4034106337148

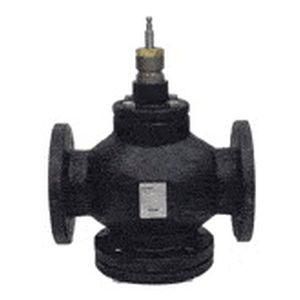

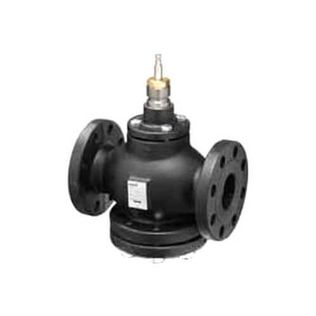

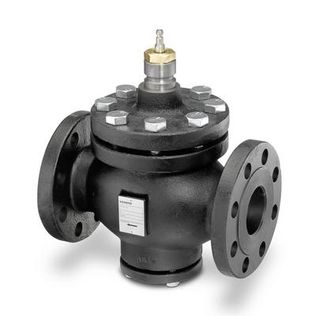

Flowrite 5” Flanged, 2-Way Valve, NC, 250 Cv, Eq Percent, Brass Trim, ANSI 125
$1,884.55
Unit1 in stock
Product Details
Flowrite, 5” 2-Way Valve, Flanged, Iron Body, 250 Cv, Equal Percentage NC, Brass Trim, ANSI Class 125; Designed to work with pneumatic or electronic actuators. For normal duty applications.
Attributes
| Connecting Thread | Valve flange face-to-face dimensions meet ISA 75.03 standards; direct-coupled universal bonnet |
| End Connection | Flanged |
| Flow Characteristic | Equal-percentage |
| Flow Coefficient Cv | 250.0000 |
| High Temperature | NO |
| Leakage Rate | Class IV (0.01% of Cv) |
| Material Inside Set | Body Trim: Bronze;Stem: Stainless steel ASTM A582 Type 303;Plug: Bronze;Seat: Single seat;Normal Duty Packing: EPDM O-rings |
| Material Valve Body | Cast iron ASTM A126 Class B |
| Medium | Saturated steam;Water;Water with anti-freeze |
| Medium Temperature | 20…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 20 ºF |
| Mounting Position | horizontal |
| Normally Open Normally Closed | Normally Closed |
| Permissible Operating Pressure | 1379 kPa |
| Port Configuration | 2-Way Normally closed |
| Rangeability | |
| Stroke | 1-½ in., 40 mm |
| Trim Material | Brass |
| Valve Body Style | Stroke-Globe |
| Valve Size | 5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS29927 |
|---|---|
| MPN | 599-05993 |
| UPC/EAN | 4034106337148 |
