Eaton E59-M30C129C02-A2

Name: Eaton E59-M30C129C02-A2
Brand: Eaton
SKU: CS2970832
Price: 292.04 USD
Availability: OutOfStock

SKU: CS2970832MPN: E59-M30C129C02-A2Alternate Part #: 41-3192-73UPC/EAN: 782116183784

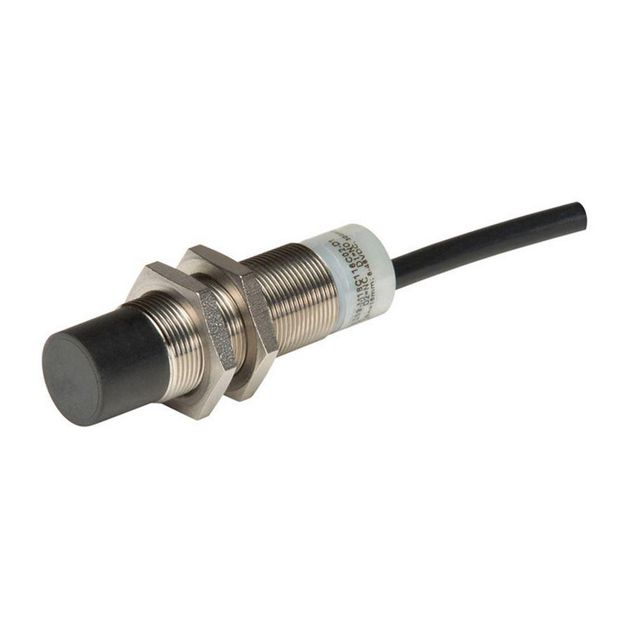

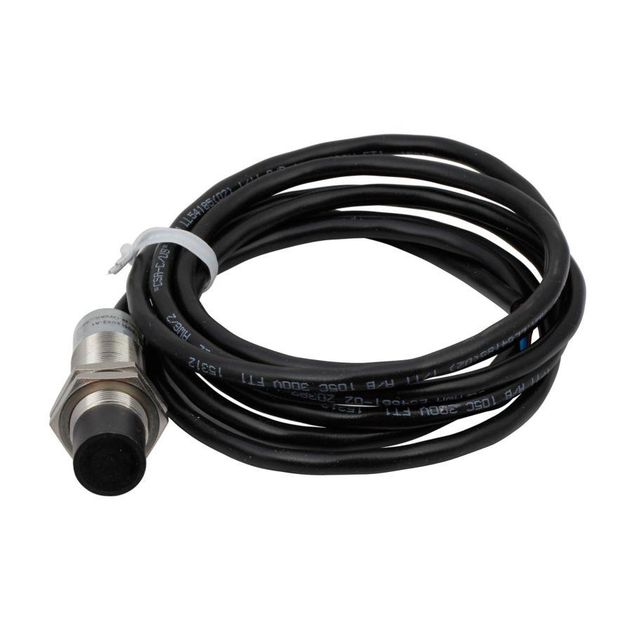

Eaton E59 iProx programmable inductive proximity sensor

Eaton E59-30LE22-BD, E59-M12A105A01-A2, E59-M12A105A01P-A1, E59-M12A105A01P-A2, E59-M12A105A01PB-A1, E59-M12A105A01PB-A2, E59-M12A105C02-A1, E59-M12A105C02-A2, E59-M12A105C02-D1NN, E59-M12A105C02-D1PP, E59-M12A105C02-D1S4, E59-M12A105C02-D2, E59-M12A105C02-D3NN, E59-M12A105C02-D3PP, E59-M12A105D01-D1NN

Eaton E59-M30C129A01-A2, E59-M30C129A01P-A1, E59-M30C129A01P-A2, E59-M30C129A01PB-A1, E59-M30C129A01PB-A2, E59-M30C129BP1-D1, E59-M30C129C02-A2, E59-M30C129C02-D1NN, E59-M30C129C02-D1PP, E59-M30C129C02-D3NN, E59-M30C129C02-D3PP

Product Details

Eaton Iprox Series Tubular Inductive Proximity Sensor Enclosure, 1.18 dia, Sensor dist 29 mmdist, 2-Wire AC, NC, 300 mA at 132 Vac, 6.6 Ft. (2m) Cable, 20-132 Vac input, \<3% of sensing dist. accuracy, 6.6 Ft. (2m)

Attributes

Accuracy	< 3% of sensing distance
Actuator Function	Unshielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	2-wire AC, NC
Contact Rating	300 mA at 132 Vac
Enclosure Material	End bell: polycarbonate Tube: stainless steel Front cap: polyphenylene sulfide
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	20-132 Vac
Led Indicator	Green power up turns red when output energized
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-40 FAH
Operating Temperature Min Uom	FAH
Protection	Auto reset short circuit
Sensor Type	Inductive proximity
Series	E59
