Eaton E57-12LE06-A

Name: Eaton E57-12LE06-A
Brand: Eaton
SKU: CS2965422
Price: 278.51 USD
Availability: OutOfStock

SKU: CS2965422MPN: E57-12LE06-AUPC/EAN: 782113933283

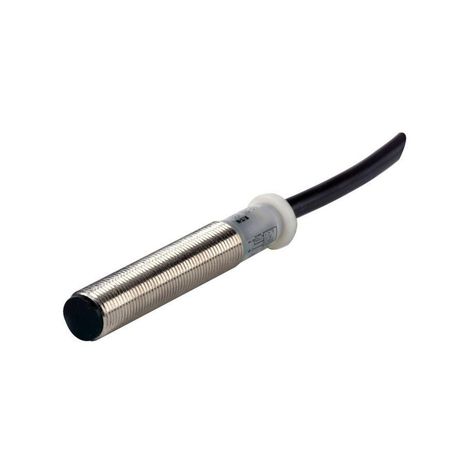

Eaton E57 inductive proximity sensor

Eaton E57-12LE06-A, E57-12LE06-A1, E57-12LE06-A1A, E57-12LE06-AA, E57-12LE06-B, E57-12LE06-B1, E57-12LE06-BD, E57-12LE06-C, E57-12LE06-C1, E57-12LE06-C1D, E57-12LE06-CD, E57-12LE10-A, E57-12LE10-A1, E57-12LE10-A1A, E57-12LE10-B1

Product Details

E57 Two-Wire Series Tubular Inductive Proximity Sensor Enclosure, 0.47 dia, dist. 6 mm, 2-Wire AC, NO, 300 mA at 132 Vac, 6.6 Ft. (2m) Cable, 20-132 Vac input, \<3% of sensing distance accuracy, None, Semi-shielded, 6.6 Ft. (2m)

Attributes

Accuracy	< 3% of sensing distance
Actuator Function	Semi-shielded
Cable Type	Polyvinyl Chloride (PVC)
Connection	6.6 ft (2 m) cable
Contact Configuration	2-wire AC, NO
Contact Rating	300 mA at 132 Vac
Enclosure Material	Tube: stainless steel Front cap: polyphenylene sulfide End bell: polycarbonate
Environmental Rating	NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K
Input Voltage	20-132 Vac
Led Indicator	Green power up turns red when output energized
Maximum Ac Current	300 mA
Operating Temperature Max	158 FAH
Operating Temperature Max Uom	FAH
Operating Temperature Min	-13 FAH
Operating Temperature Min Uom	FAH
Sensor Type	Inductive proximity
Series	E57
