Siemens 254-01117
SKU: CS292639MPN: 254-01117UPC/EAN: 804766012198

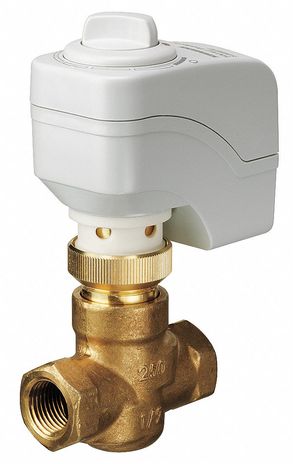

MZ Series Valve Assembly, ANSI 250, 2W, NO, Linear, ½”, FxF, 0.63 Cv, El/Mech
$156.65
UnitAvailable on backorder
Product Details
This Valve Assembly is a Powermite 599 MZ Series, ANSI Class 250, 2-W, NO, Linear, 0.63 Cv, FxF, ½”, 200 N, Brass Body, Includes SSB MZ Series Elect/Mech Actuator, Used for control of hot or chilled water for convectors, fan coil units, reheat coils
Attributes
| Actuator Type | Electronic |
| Close Off Pressure | 60 psi |
| Control Signal | Floating control |
| End Connection | FxF |
| Fail Safe | No |
| Flow Characteristic | Modified Equal-percentage |
| Flow Coefficient Cv | 0.62999999523163 |
| Max Differential Pressure Liquid | 25 psi |
| Max Inlet Pressure Absolute Liquid | 400 psi |
| Medium | Water;Water with anti-freeze |
| Medium Temperature | 35…250 ºF |
| Medium Temperature F Max | 250 ºF |
| Medium Temperature F Min | 35 ºF |
| Operating Voltage | 24 VAC |
| Port Configuration | 2-Way Normally open |
| Spring Return Function | Non-spring return functionality |
| Supply Voltage | 24 VAC |
| Trim Material | Brass |
| Valve Size | 0.5 in |
| Valve Type | Two-way |
Specifications
| SKU | CS292639 |
|---|---|
| MPN | 254-01117 |
| UPC/EAN | 804766012198 |
