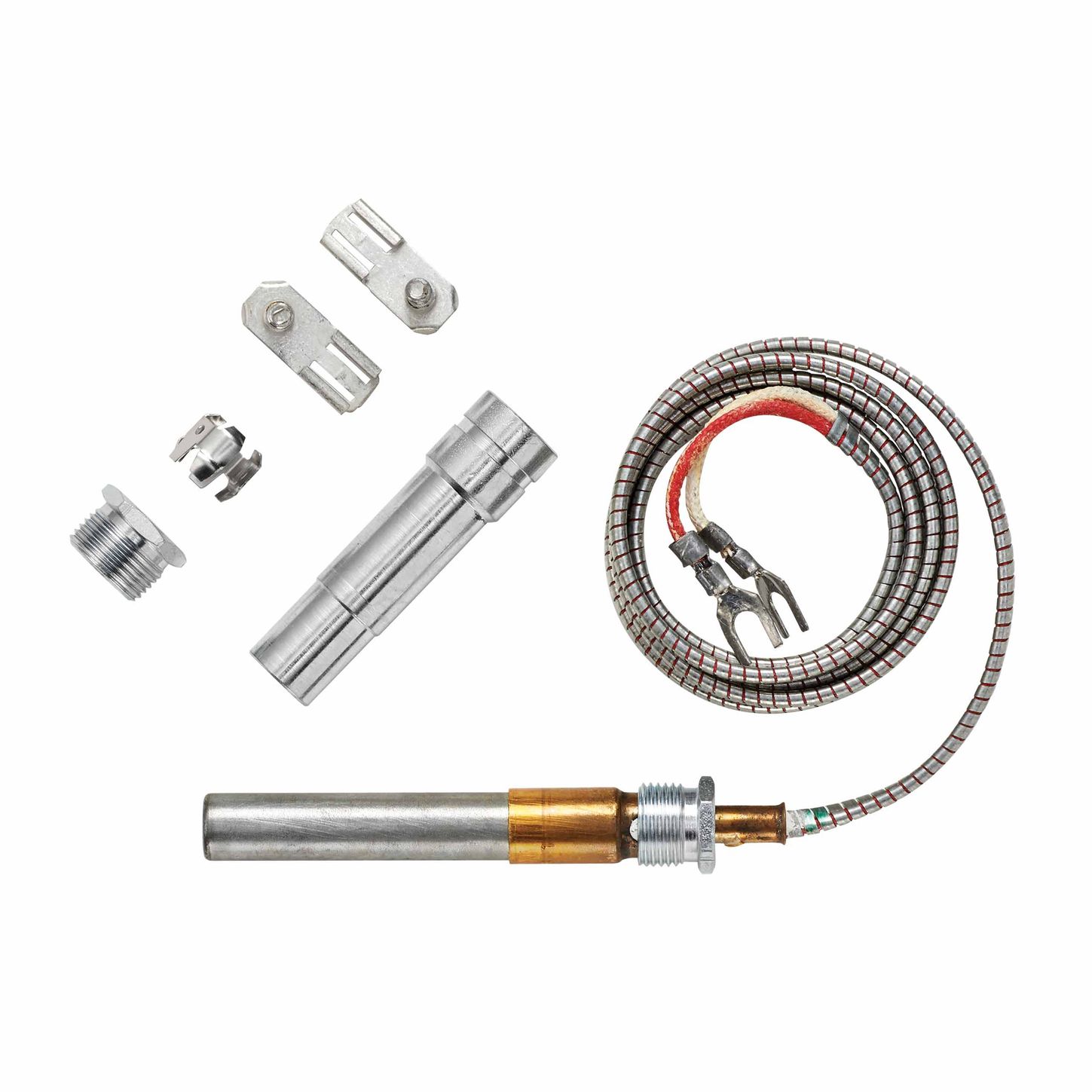

Resideo Q313A1188

35 in. 750 mV Thermopile with Push-In Clip and Split Nut

Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Features

• Push-in clip, split nut, and adapter assembly for easy pilot burner installation
• Spade or quick-connect terminals available for millivolt gas control connections
• Male nut connector for Pilotstat safety control power units
• Available in a variety of lead lengths

Specifications

• Voltage: 750 mV
• Connection Type: Spade Terminals
• Lead Length (in.): 35 in.
• Open Circuit Output (mV): 600 mV to 750 mV
• Resistance: 2.89 ohm
• Temperature Ratings (F): Hot Junction 1400 F
• Temperature Ratings (F)
• Includes: Push-in clip, ½ in. thermopile attaching nut
• Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
